Mitsubishi Outlander: Emergency starting

If the engine cannot be started because the battery is weak or dead, the battery from another vehicle can be used with jumper cables to start the engine.


● To start the engine using jumper cables connected to another vehicle, perform the correct procedures according to the instruction below. Incorrect procedures could result in a fire or explosion or damage to the vehicles.


● Do not attempt to start the engine by pulling or pushing the vehicle.

It could damage your vehicle.

● Always wear protective eye goggles when working near the battery.

● Keep the battery out of the reach of children.

1. Get the vehicles close enough so the jumper cables can reach, but be sure the vehicles aren’t touching each other.


● Check the other vehicle. It must have a 12-volt battery.

If the other system isn’t 12-volt, shorting can damage both vehicles.

2. Set the parking brake firmly on each vehicle. Put an automatic transmission in the “P” (PARK) position or a manual transmission in the “N” (Neutral) position. Turn off the ignition switch.


● Turn off the ignition on both vehicles beforehand.

Make sure that the cables or your clothes cannot be caught by the fan or drive belt. Personal injury could result.

3. Turn off all lamps, heater and other electrical loads.

4. Make sure battery electrolyte is at the proper level.

Refer to “Battery”.


● If electrolyte fluid is not visible, or appears to be frozen, Do Not Attempt Jump Starting! A battery might rupture or explode if the temperature is below the freezing point or if it is not filled to the proper level.

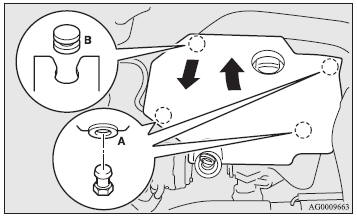

5. Lift up the front of the engine cover to release the 3 grommets (A). Then,

5. Lift up the front of the engine cover to release the 3 grommets (A). Then, pull the engine cover towards you to release the grommet (B) and remove the cover.

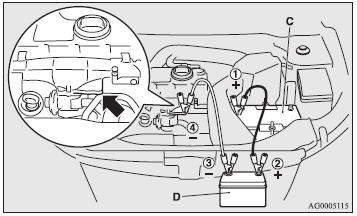

6. Connect one end of one jumper cable to the positive (+) terminal of the discharged

6. Connect one end of one jumper cable to the positive (+) terminal of the discharged battery (C), and the other end to the positive (+) terminal of the booster battery (D).

7. Connect one end of the other jumper cable to the negative (-) terminal of the booster battery, and the other end to the engine block of the vehicle with the discharged battery at the point farthest from the battery.


● Make sure you observe the following order when connecting the cables:

● Make sure you make connectioncorrect designated location (as shown in the illustration). If the connection isto the correct designated location (as shown in the illustration). If the connection is made directly to the negative (-) side of the battery, flammable gases generated from the battery might catch fire and explode.

● When connecting the jumper cables, do not allow the positive (+) cable and negative (-) terminal to make contact. Otherwise sparks might cause explosion of the battery.


● Use care not to get the jumper cable caught in the cooling fan or other rotating part in the engine compartment.

● Use the proper cables suitable for the battery size to prevent overheating of the cables.

● Check the jumper cables for damage and corrosion before use.

8. Start the engine in the vehicle which has the booster battery, let the engine idle a few minutes, then start the engine in the vehicle with the discharged battery.


● Keep the engine of the vehicle giving assistance running.

9. After the engine is started, disconnect the cables in the reverse order and keep the engine running for several minutes.


● If the battery has to be charged while fitted in the vehicle, disconnect the vehicle side negative (-) terminal connected to the battery.

● Keep sparks, cigarettes, and flames away from the battery because the battery could explode.

● Use adequate ventilation when charging or using the battery in an enclosed space.

● Remove all the caps before charging the battery.

● Electrolyte is corrosive diluted sulphuric acid.

If electrolyte (battery acid) comes into contact with your hands, eyes, clothes and the painted surface of your vehicle, it should be thoroughly flushed with water. If electrolyte gets in your eyes, flush them with water immediately and thoroughly, and get prompt medical attention.


● If the vehicle is put in motion without fully charging the battery, it might cause the loss of the smooth engine operation and the anti-lock brake warning lamp to illuminate.

! CAUTION Refer to “Anti-lock brake system (ABS)”.
