Mitsubishi Outlander: Power steering fluid
Mitsubishi Outlander 2007-2013 Owner's Manual / Maintenance / Power steering fluid

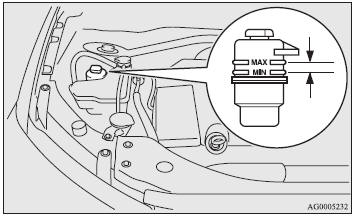

To check the fluid level
Check the fluid level in the reservoir while the engine is idling.
Check to make certain that the power steering fluid level is always between the “MAX” and “MIN” level markings on the fluid reservoir and refill the fluid, if necessary.
Recommended fluid
Use “ATF DEXRON III or DEXRON II”.
