Mitsubishi Outlander: Cruise control

Cruise control is an automatic speed control system that lets you keep the same driving speed. It can be activated at 40 km/h (25 mph) or more.

CAUTION:

● When you do not wish to drive at a constant speed, deactivate the cruise control function for safety.

● Do not use cruise control when driving conditions will not allow you to stay at the same speed, such as in heavy traffic or on roads that are winding, icy, snowy, wet, slippery or on a steep downhill slope.

● If you shift to “N” (Neutral) in cruise control mode without pressing the clutch first, the engine will run too fast and might be damaged.

NOTE:

● Cruise control may not be able to keep your speed on uphills or downhills.

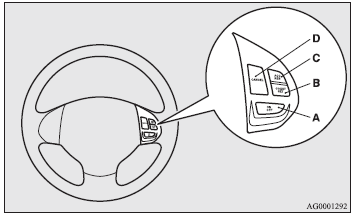

Cruise control switches

A- “ON OFF” switch

A- “ON OFF” switch

Used to activate and deactivate the cruise control function.

B- “COAST SET” switch

Used to reduce the set speed and to set the speed of constantspeed driving.

C- “ACC RES” switch

Used to increase the set speed and, when constant-speed driving is finished, to return to the original set speed.

D- “CANCEL” switch

Used to terminate constant-speed driving.

NOTE:

● When operating the cruise control switches, correctly press each cruise control switch.

The cruise control may be turned off automatically if two or more of the cruise control switches are pressed at the same time.

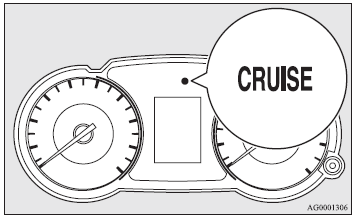

“CRUISE” control indicator

This indicator will come on when the cruise control “ON OFF” switch (A) is pressed

This indicator will come on when the cruise control “ON OFF” switch (A) is pressed to turn on the cruise control system.

To activate

1. Lightly press the “ON OFF” switch (A).

1. Lightly press the “ON OFF” switch (A).

NOTE:

● If the cruise control is on when the ignition switch is turned to “OFF” position, cruise control will turn on automatically and the “CRUISE” control indicator will illuminate the next time you start the engine.

● If the battery voltage is insufficient, the memory data for the cruise control will be erased. As a result, the “CRUISE” control indicator may not come on when you restart the engine. If this happens, press the “ON OFF” switch once again to activate the cruise control.

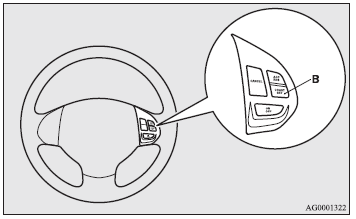

2. Press the “COAST SET” switch (B) while driving at the desired speed.

2. Press the “COAST SET” switch (B) while driving at the desired speed.

NOTE:

● The speed when you released the “COAST SET” switch will be set as the cruising speed.

● It is not possible to set the vehicle speed while driving in 1st gear.

To increase the set speed

There are 2 ways to increase the set speed.

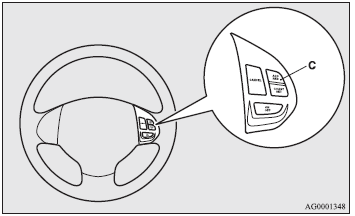

“ACC RES” switch If you press and hold down the “ACC RES” switch (C), the speed will gradually increase. When you reach your desired speed, release the switch. Your cruising speed is now set.

To increase the speed in small amounts, press the “ACC RES” switch (C) for less

To increase the speed in small amounts, press the “ACC RES” switch (C) for less than 1 second and release it. Every time you press the “ACC RES” switch (C), the speed will increase by approximately 1.6 km/h (1 mph).

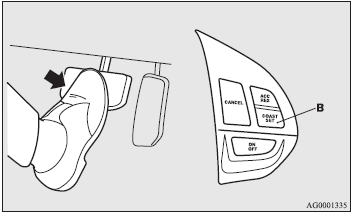

Accelerator pedal

Use the accelerator pedal to reach your desired speed and then push the “COAST

Use the accelerator pedal to reach your desired speed and then push the “COAST SET” switch (B) and release the switch momentarily to set a new desired cruising speed.

To decrease the set speed

There are 2 ways to reduce the set speed.

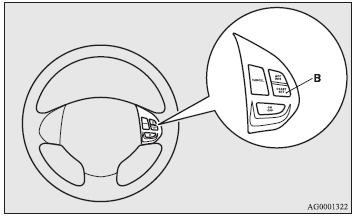

“COAST SET” switch Press and hold the “COAST SET” switch (B) while driving at the set speed, and you will slow down (coast) gradually.

When you reach desired speed, release the “COAST SET” switch. Your cruising speed is now set.

To decrease the speed in small amounts, press the “COAST SET” switch (B) for

To decrease the speed in small amounts, press the “COAST SET” switch (B) for less than 1 second and release it. Every time you press the “COAST SET” switch (B), the speed will decrease by approximately 1.6 km/h (1 mph).

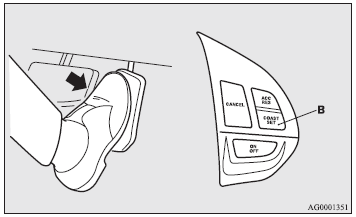

Brake pedal

Use the brake pedal, which disengages the cruise control, then push the “COAST

Use the brake pedal, which disengages the cruise control, then push the “COAST SET” switch (B) and release the switch momentarily to set a new desired cruising speed.

To temporarily increase or decrease the speed

To temporarily increase the speed

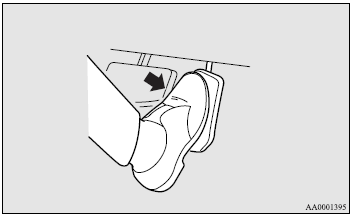

Press the accelerator pedal as you would normally. When you release the pedal,

Press the accelerator pedal as you would normally. When you release the pedal, you will return to your set speed.

To temporarily decrease the speed

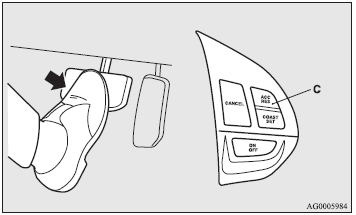

Apply the brakes to decrease the speed. To return to the previously set speed,

Apply the brakes to decrease the speed. To return to the previously set speed, press the “ACC RES” switch. Refer to “To resume the set speed”.

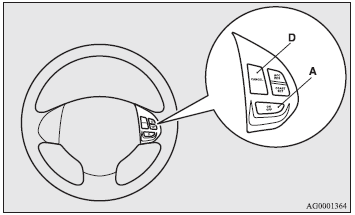

To deactivate

The cruise control can be turned off as follows:

● Press the “ON OFF” switch (A) (cruise control function will be deactivated).

● Press the “CANCEL” switch (D).

● Depress the brake pedal or slightly tap it.

The cruise control can be turned off automatically in any of the following ways:

The cruise control can be turned off automatically in any of the following ways:

● By pressing the clutch pedal down.

● When your speed slows to about 35 km/h (22 mph) or less.

● When the active stability control (ASC) starts operating (if so equipped). Refer to “Active stability control (ASC)”.

To resume the set speed

If the cruise control is deactivated by the condition described in “To deactivate”, you can resume the previously set speed by pressing the “ACC RES” switch (C) while driving at a speed of approximately 40 km/h (25 mph) or greater.

Under either of the following conditions, however, using the switch does not

Under either of the following conditions, however, using the switch does not allow you to resume the previously set speed.

In these situations, repeat the speed setting procedure:

● The cruise control is turned OFF.

● The ignition switch is turned to the “OFF” position.
