Mitsubishi Outlander: Front seat

To adjust forward or backward

Manual type

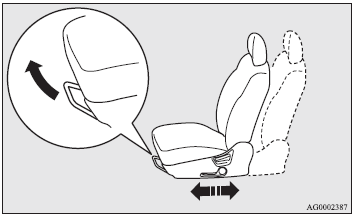

Pull the seat adjusting lever and adjust the seat forward or backward to the

Pull the seat adjusting lever and adjust the seat forward or backward to the desired position, and release the adjusting lever.

WARNING:

● To ensure the seat is locked securely, try to move the seat forward or backward without using the adjusting lever.

Power type

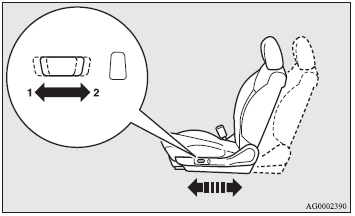

Adjust the seat by operating the switch as indicated by the arrows.

1- Adjustment forward.

1- Adjustment forward.

2- Adjustment backward.

NOTE:

● To prevent the battery from discharging, use the power seat while the engine is on.

To recline the seatback

Manual type

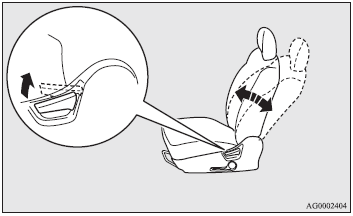

In order to recline the seatback, lean forward slightly, pull the seatback lock

In order to recline the seatback, lean forward slightly, pull the seatback lock lever up, and then lean backward to the desired position and release the lever. The seatback will lock in that position.

CAUTION:

● The reclining mechanism of the seatback is spring loaded, causing it to return to the vertical position when the lock lever is operated. When using the lever, sit close to the seatback or hold it with your hand to control its return motion.

Power type

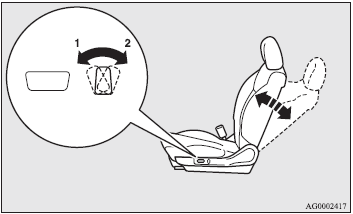

Adjust the seatback angle by operating the switch as indicated by the arrows.

1- To move to forward direction.

1- To move to forward direction.

2- To recline rearward.

NOTE:

● To prevent the battery from discharging, use the power seat while the engine is on.

To adjust seat height (driver’s seat only)

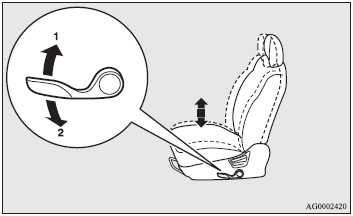

Manual type

To adjust the seat height, operate the lever repeatedly to adjust.

1- Raise.

1- Raise.

2- Lower.

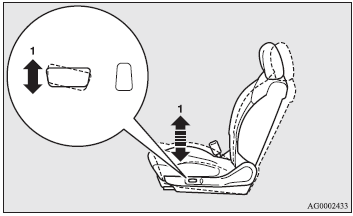

Power type

To adjust the seat height, operate the switch as indicated by arrows.

NOTE:

● To prevent the battery from discharging, use the power seat while the engine is on.

1- To move the front of the seat up and down

1- To move the front of the seat up and down

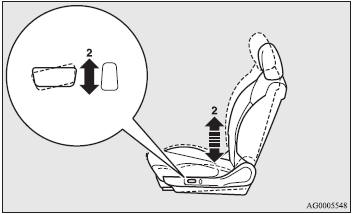

2- To move the rear of the seat up and down

2- To move the rear of the seat up and down

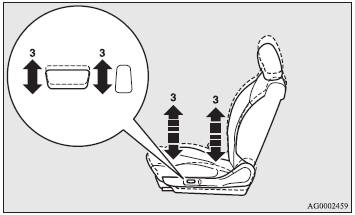

3- To move the whole seat up and down

3- To move the whole seat up and down

Armrest

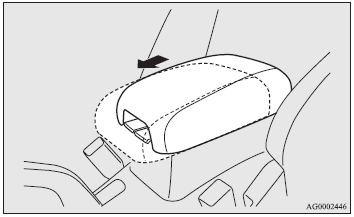

The lid of the floor console box can be moved forward and backward, and used

The lid of the floor console box can be moved forward and backward, and used as an armrest.

Heated seats

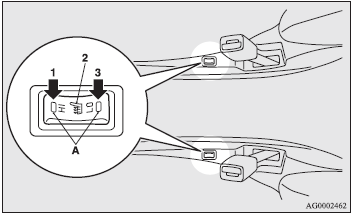

The heated seats can be operated with the ignition switch in the “ON” position. The indication lamp (A) will illuminate while the heater is on.

1- Heater high (for quick heating).

1- Heater high (for quick heating).

2- Heater off.

3- Heater low (to keep the seat warm).

CAUTION:

● Operate in the high position for quick heating. Once the seat is warm, set the heater to low to keep it warm. Slight variations in seat temperature may be felt while using the heated seats. This is caused by the operation of the heater’s internal thermostat and does not indicate a malfunction.

● If the following types of persons use the heated seats, they might become too hot or receive minor burns (red skin, heat blisters, etc.):

• Children, elderly or ill people • People with sensitive skin • Excessively tired people • People under the influence of alcohol or sleep inducing medication (cold medicine, etc.) ● Do not place heavy objects on the seat or stick pins, needles, or other pointed objects into it.

● Do not use a blanket, cushion, or other material with high heat insulation properties on the seat while using the heater; this might cause the heater element to overheat.

● Do not use benzene, petrol, alcohol or other organic solvents when cleaning the seats. Doing so could damage not only the seat cover, but also the heater element.

● If water or any other liquid is spilled on the seat, allow it to dry thoroughly before attempting to use the heater.

● Turn the heater off immediately if it appears to be malfunctioning during use.
