Mitsubishi Outlander: Third seat (7 persons)

To fold out the underfloor-stowable third seat

The third seat is stowed under the floor. Use the seat when extra people ride in your vehicle. When not in use, stow the seat under the floor and use as a luggage area.

WARNING:

● Make sure that you arrange the third seat before starting to drive. Arranging the seats while driving could cause them to move more than required, resulting in a serious or life-threatening injury.

● After arranging the third seat, check that the seat is securely locked in place. If the third seat is not securely locked in place, it could move and cause a serious or life-threatening injury.

● While driving, do not use the third seat with the second seat still collapsed. The second seat could fall back during sudden braking or a collision and result in a serious or life-threatening injury.

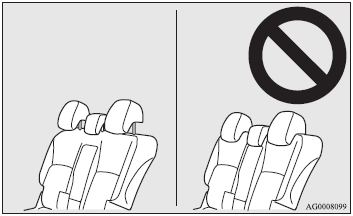

● Always make sure that the head restraints of the second seat are raised when sitting in the third seat. If the head restraints of the second seat remain lowered, it could cause a serious or life-threatening head injury during sudden braking or a collision.

● For reasons of safety, whenever passenger sit in the third seat, be sure to raise all the head restraints of the second seats.

CAUTION:

CAUTION:

● Make sure that the third seat is arranged by an adult. If arranged by a child, it could result in an accident.

● When arranging the third seat, keep hands and feet away from beneath the seat and any moving parts.

● The exhaust pipe is still hot for a while after stopping the engine, so be sure not to touch it.

To fold out

1. Open the tailgate. Refer to “Tailgate”.

1. Open the tailgate. Refer to “Tailgate”.

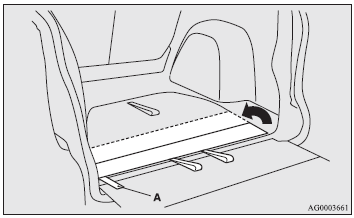

2. Pull up the cover from the rear direction.

Fasten the pulled up cover to the seatback with the band (A).

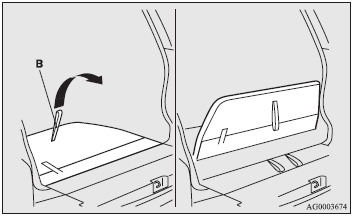

3. Pull the belt (B) located in the centre of the seatback and raise the seatback.

3. Pull the belt (B) located in the centre of the seatback and raise the seatback.

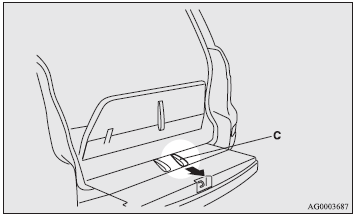

4. Pull the belt (C- black) to release the lock.

4. Pull the belt (C- black) to release the lock.

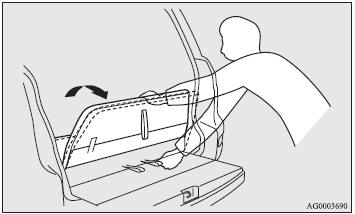

5. Tilt the whole of the third seat to the rear.

5. Tilt the whole of the third seat to the rear.

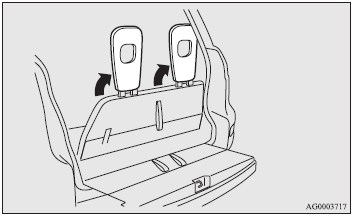

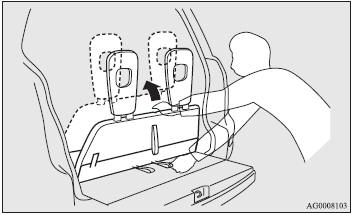

6. Raise the head restraints.

6. Raise the head restraints.

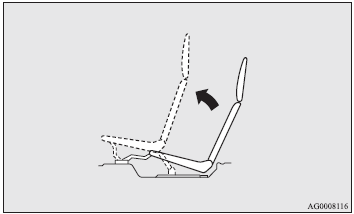

7. Lift up the whole of the third seat from the floor and fasten it to the front.

7. Lift up the whole of the third seat from the floor and fasten it to the front.

NOTE:

● Push up the third seat to the front to make sure that is securely locked in place.

WARNING:

WARNING:

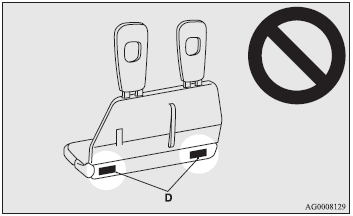

● When lifting up the third seat, do not put your hands in the areas indicated by the red labels (D).

You could trap your fingers in the seat hinge and be injured.

8. Return the cover to its position.

8. Return the cover to its position.

Lightly push the seat and seatback to make sure they are set firmly in place.

To retract

1. Open the tailgate. Refer to “Tailgate”.

1. Open the tailgate. Refer to “Tailgate”.

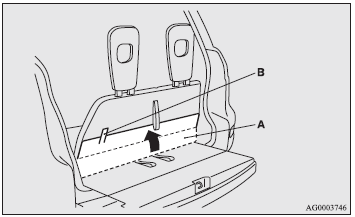

2. Pull up the cover (A) from the rear direction. Fasten the pulled up cover to the seatback with the band (B).

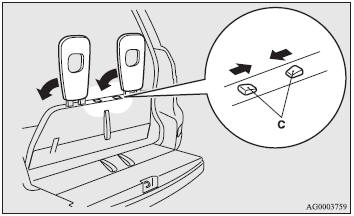

3. Slide the knob while folding the head restraints (C) to the rear, and stow

3. Slide the knob while folding the head restraints (C) to the rear, and stow to the front one side at a time.

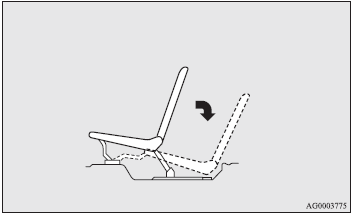

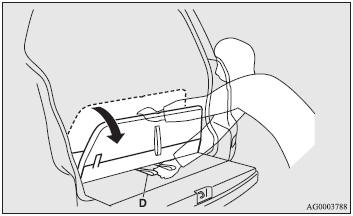

4. Stow the whole of the third seat under the floor while pulling the belt (D-

4. Stow the whole of the third seat under the floor while pulling the belt (D- grey).

CAUTION:

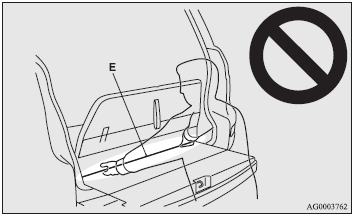

● Do not put your hands on the end trim (E) when stowing the third seat under the floor. Doing so could trap and injure your hand.

NOTE:

NOTE:

● Push down on the rear of the third seat until it is securely locked to the floor.

● If the third seat is difficult to lock, return it to its original position. Then push it down while pulling strongly on the belt until the rear of the third seat makes contact with the floor and locks in place.

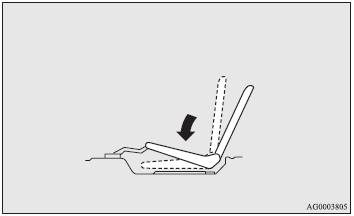

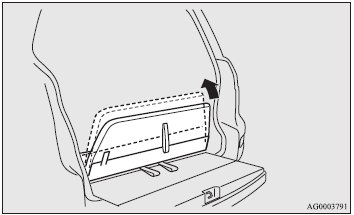

5. Tilt the whole of the seat to the front.

5. Tilt the whole of the seat to the front.

NOTE:

● Before folding the seatback, make sure that the front of the third seat is securely locked to the floor.

● If the third seat is difficult to lock, make sure that the rear of the third seat is securely locked to the floor, and then strongly tilt the whole of the seat to the front to lock in place.

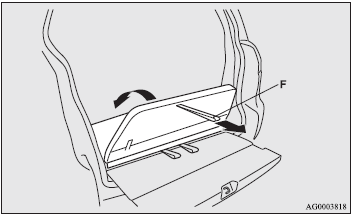

6. Fold the seatback while pulling the belt (F) located in the centre of the

6. Fold the seatback while pulling the belt (F) located in the centre of the seatback.

NOTE:

● When stowing the third seat, make sure there is no luggage in the stowing area. If the seat is stowed while there is luggage in the stowing area, it could damage the seat.

7. Return the cover to its position.
