Mitsubishi Outlander: Hazard warning flasher switch
Mitsubishi Outlander 2007-2013 Owner's Manual / Instruments and controls / Hazard warning flasher switch
Use the hazard warning flasher switch when the vehicle has to be parked on the road for any emergency.
The hazard warning flashers can always be operated, regardless of the position of the ignition switch.

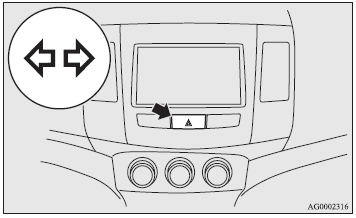

Push the switch to turn on the hazard warning flashers, all turn signal lamps flash continuously. To turn them off, push the switch again.
