Mitsubishi Outlander: Wiper and washer switch

Windscreen wipers

The windscreen wipers can be operated with the ignition switch in the “ON” or “ACC” position.

If the blades are frozen to the windscreen or rear window, do not operate the wipers until the ice has melted and the blades are freed, otherwise the wiper motor may be damaged.

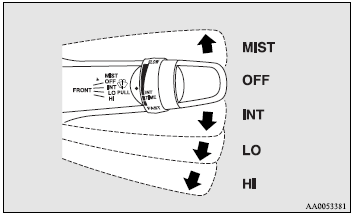

MIST- Misting function.

MIST- Misting function.

The wipers will operate once.

OFF- Off.

INT- Intermittent (Speed sensitive).

LO- Slow.

HI- Fast.

To adjust intermittent intervals

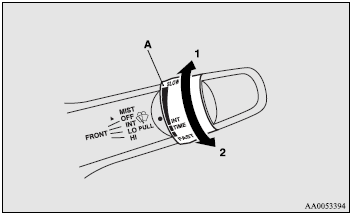

With the lever in the “INT” (speed-sensitive) position, the intermittent intervals can be adjusted by turning the knob (A).

1- Fast.

1- Fast.

2- Slow.

NOTE:

● The speed-sensitive-operation function of the windscreen wipers can be deactivated.

For furher information, we recommend you to consult a MITSUBISHI MOTORS Authorised Service Point.

On vehicles equipped with Mitsubishi Multi-Communication System (MMCS), screen operations can be used to make the adjustment. Refer to the separate owner’s manual for details.

Misting function

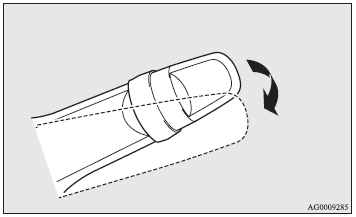

Move the lever in the direction of the arrow and release, to operate the wipers

Move the lever in the direction of the arrow and release, to operate the wipers once.

Use this function when you are driving in mist or drizzle.

Windscreen washer

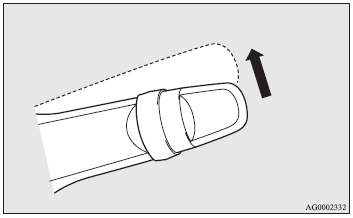

The washer fluid will be sprayed onto the windscreen by pulling the lever toward

The washer fluid will be sprayed onto the windscreen by pulling the lever toward you. The wipers operate automatically several times while the washer fluid is being sprayed On a vehicle equipped with the headlamp washer, the headlamp washer operates together with the windscreen washer the first time the windscreen washer is used if the headlamps are on.

CAUTION:

● If the washer is used in cold weather, the washer fluid sprayed against the glass may freeze resulting in poor visibility. Heat the glass with the defroster or demister before using the washer.

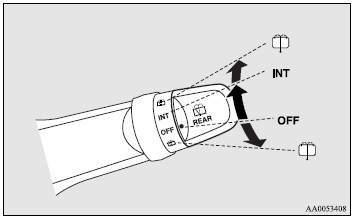

Rear window wiper and washer

The rear window wiper and washer switch can be operated with the ignition switch in the “ON” or “ACC” position.

INT - The wiper operates continuously for several seconds then operates intermittently

INT - The wiper operates continuously for several seconds then operates intermittently at intervals of about every 8 seconds.

OFF - Off.

onto the rear window when the knob is turned fully in either direction.- The washer fluid will be sprayed onto the rear window when the knob is turned fully in either direction.

The wipers operate automatically several times while the washer fluid is being sprayed.

NOTE:

● To ensure a clear rearward view, the wiper performs a number of continuous operations either when the switch is moved to the “INT” position or when the reverse gear is engaged while the switch is in the “INT” position.

Following this continuous operation, the wiper will automatically switch to intermittent operation.

● It is possible to activate the following functions. For further information, we recommend you to consult a MITSUBISHI MOTORS Authorised Service Point.

On vehicles equipped with Mitsubishi Multi-Communication System (MMCS), screen operations can be used to make the adjustment. Refer to the separate owner’s manual for details.

• Adjustment of the interval for intermittent operation • Changing intermittent wiper operation to continuous wiper operation
