Mitsubishi Outlander: Rear window demister switch

The rear window demister switch can be operated when the engine is running.

The rear window demister switch can be operated when the engine is running.

Push the switch to turn on the rear window demister. It will be turned off automatically in about 20 minutes. To turn off the demister within about 20 minutes, push the switch again.

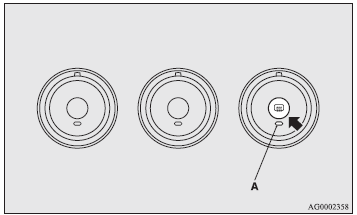

The indicator lamp (A) will illuminate while the demister is on.

NOTE:

● When the rear window demister switch is pressed, the outside rearview mirrors are defogged or defrosted. Refer to “Heated mirror”.

● When the rear window demister switch is pushed, the window glass becomes warm and the wipers become operable. Refer to “Wiper deicer switch”.

● The demister switch is not to melt snow but to clear mist.

Remove snow before use of the demister switch.

● When cleaning the inside of the rear window, use a soft cloth and wipe lightly along the heater wires, being careful not to damage the wires.

● Do not allow objects to touch the inside of the rear window glass, damaged or broken wires may result.
