Mitsubishi Outlander: Interior lamps

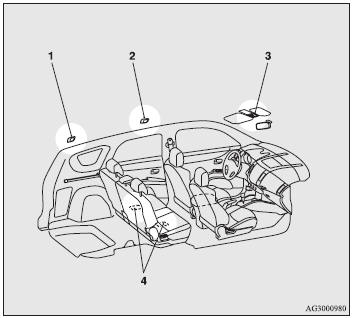

1- Luggage room lamp 2- Room lamp (rear).

1- Luggage room lamp 2- Room lamp (rear).

3- Map & room lamps (front).

4- Foot lamps P. 8-58.

NOTE:

● If you leave the lamps on without running the engine, you will run down the battery.

Before you leave the vehicle, make sure the lamps are turned off.

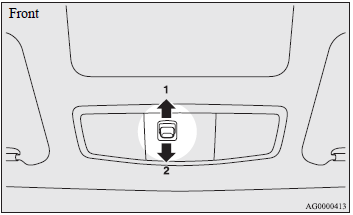

Room lamps

1- (DOOR).

1- (DOOR).

The lamp illuminates when a door or the tailgate is opened, and when the door or tailgate is closed the lamp dims for about 15 seconds before going out.

However, the lamp immediately goes out in the following cases.

• When the doors and the tailgate are closed and the ignition switch is turned to the “ON” position.

• When the doors and the tailgate are closed and the central door lock function is used to lock the vehicle.

• If the vehicle is equipped with the keyless entry system, when the keyless entry system remote control switch is used to lock the vehicle.

• If the vehicle is equipped with the keyless operation system, when the keyless operation function is used to lock the vehicle.

NOTE:

● For vehicles equipped with keyless entry system, if the key was used to start the engine, when the doors and tailgate are closed the lamp illuminates when the key is removed, and after about 15 seconds it goes out.

● If the keyless operation function was used to start the engine, when the doors and tailgate are closed the lamp illuminates when the ignition switch is turned to the “LOCK” position, and after about 15 seconds it goes out.

● The time until the lamp goes out can be adjusted. For details, please consult a MITSUBISHI MOTORS Authorised Service Point. For vehicles equipped with the HDD navigation Mitsubishi Multi-Communication System (MMCS), adjustments can be made using screen operations.

For details, refer to the separate owner’s manual.

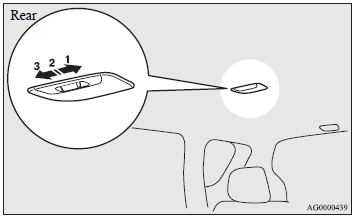

2- (OFF).

The lamp stays off regardless of whether the doors and tailgate are open or closed.

1- (ON).

1- (ON).

The lamp illuminates regardless of whether the doors and tailgate are open or closed.

2-The lamp illuminates when a door or the tailgate is opened, and when the door.

The lamp illuminates when a door or the tailgate is opened, and when the door or tailgate is closed the lamp dims for about 15 seconds before going out.

However, the lamp immediately goes out in the following cases.

• When the doors and the tailgate are closed and the ignition switch is turned to the “ON” position.

• When the doors and the tailgate are closed and the central door lock function is used to lock the vehicle.

• If the vehicle is equipped with the keyless entry system, when the keyless entry system remote control switch is used to lock the vehicle.

• If the vehicle is equipped with the keyless operation system, when the keyless operation function is used to lock the vehicle.

NOTE:

● For vehicles equipped with keyless entry system, if the key was used to start the engine, when the doors and tailgate are closed the lamp illuminates when the key is removed, and after about 15 seconds it goes out.

● If the keyless operation function was used to start the engine, when the doors and tailgate are closed the lamp illuminates when the ignition switch is turned to the “LOCK” position, and after about 15 seconds it goes out.

● When the room lamp switch is in the “ON” position, the lamp does not go out, even if the doors and tailgate are closed.

● The time until the lamp goes out can be adjusted. For details, please consult a MITSUBISHI MOTORS Authorised Service Point. For vehicles equipped with the HDD navigation Mitsubishi Multi-Communication System (MMCS), adjustments can be made using screen operations.

For details, refer to the separate owner’s manual.

3- (OFF).

The lamp stays off regardless of whether the doors and tailgate are open or closed.

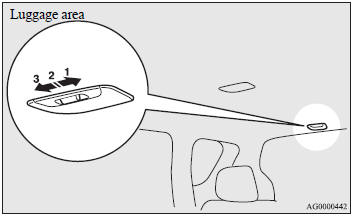

1- (ON).

1- (ON).

The lamp illuminates regardless of whether the tailgate is open or closed.

2-The lamp illuminates when the tailgate is opened, and goes out when the tailgate.

The lamp illuminates when the tailgate is opened, and goes out when the tailgate is closed.

3- (OFF).

The lamp goes out regardless of whether the tailgate is open or closed.

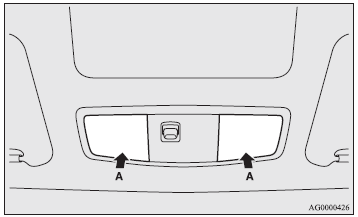

Map lamps

Push the lens (A) to turn on the lamp. Push it again to turn it off.

Push the lens (A) to turn on the lamp. Push it again to turn it off.

Lamps (room lamps, etc.) auto-cutout function

If any of the interior lamps are left switched on with the ignition switch in any position other than “ON” or “ACC”, it goes off automatically after approximately 30 minutes to prevent complete discharge of the battery.

The interior lamps will illuminate again if the ignition switch is set to the “ON” or “ACC” position, if one of the doors or the tailgate is opened and closed, or if the keyless entry system or keyless operation system is operated.

NOTE:

● The interior lamp auto-cut function can be deactivated.

For details and support, consult your nearest MITSUBISHI MOTORS Authorised Service Point.

For vehicles equipped with the HDD navigation Mitsubishi Multi-Communication System (MMCS), adjustments can be made using screen operations. For details, refer to the separate owner’s manual.
