Mitsubishi Outlander: Washer fluid

Open the washer fluid reservoir cap and check the level of washer fluid with

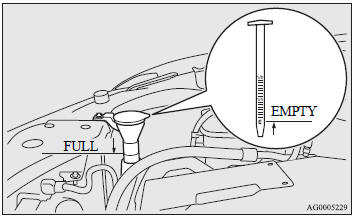

Open the washer fluid reservoir cap and check the level of washer fluid with the dipstick.

If the level is low, replenish the container with washer fluid.


● The washer fluid container serves the windscreen, rear window and headlamps.

During cold weather

To ensure proper operation of the washers at low temperatures, use a fluid containing an anti-freezing agent.
