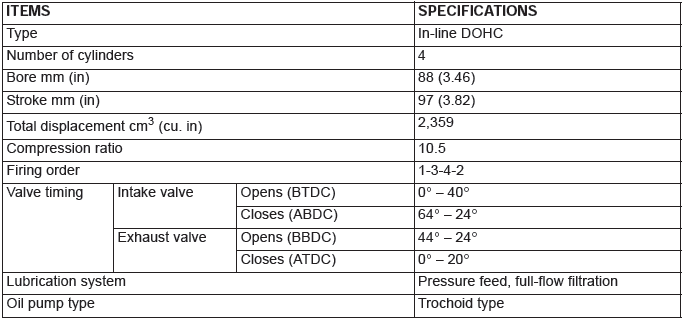

General Information

The 4B12 (2.4 L) engine is an in-line four-cylinder engine. The cylinder numbers are assigned as 1-2-3-4 from the front of the engine (timing belt side).

The firing order is 1-3-4-2.

Mitsubishi Outlander. Engine Mechanical

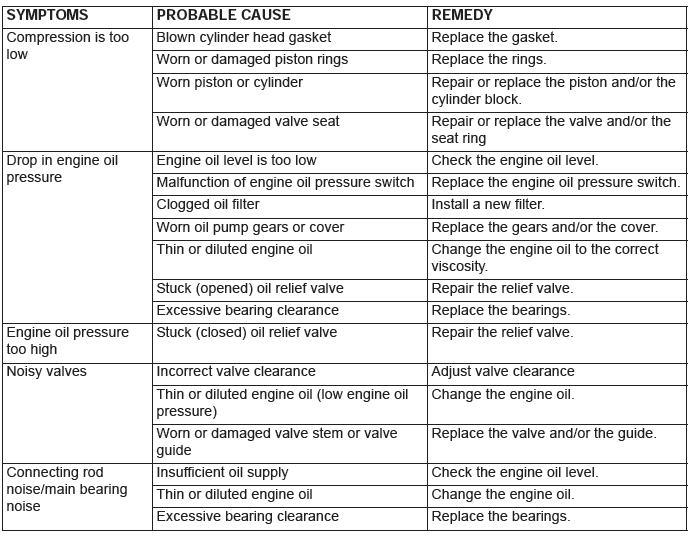

Engine Diagnosis

Mitsubishi Outlander. Engine Mechanical

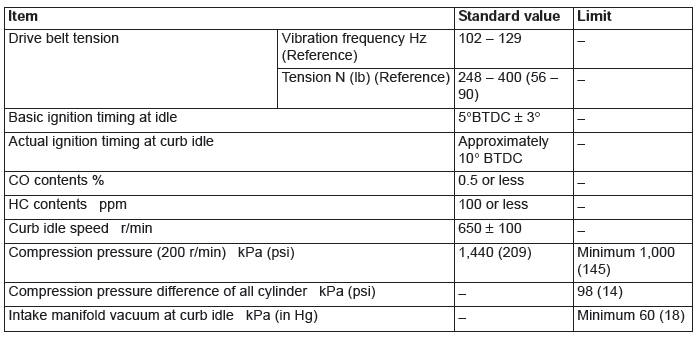

Service Specifications

Mitsubishi Outlander. Engine Mechanical

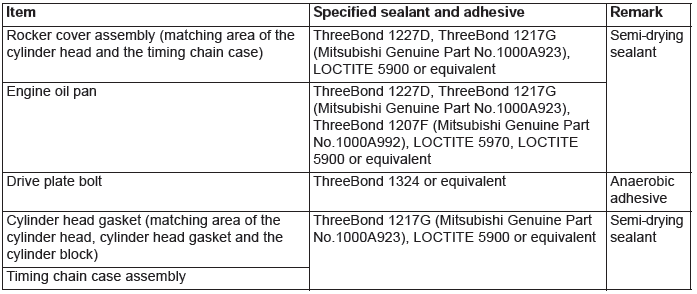

Sealants and Adhesive

Mitsubishi Outlander. Engine Mechanical

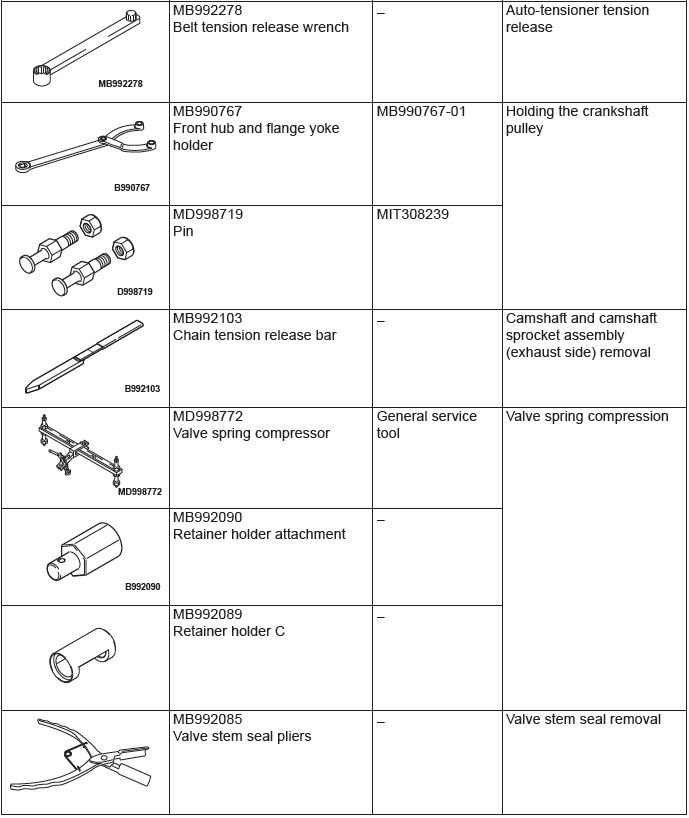

Special Tools

Mitsubishi Outlander. Engine Mechanical

Mitsubishi Outlander. Engine Mechanical

Mitsubishi Outlander. Engine Mechanical

Mitsubishi Outlander. Engine Mechanical
