Mitsubishi Outlander: Check Procedure For Each Multi Information Display Screen

CHECK PROCEDURE FOR EACH MULTI INFORMATION DISPLAY SCREEN <VEHICLES WITHOUT COLOR LIQUID CRYSTAL DISPLAY>

CAUTION When there are TV towers, substations, or broadcasting stations which emit strong radio waves in proximity, on rare occasions, a warning is displayed on the multi information screen for a few seconds. This is caused by the reception of strong radio waves, and there is no functional problem.

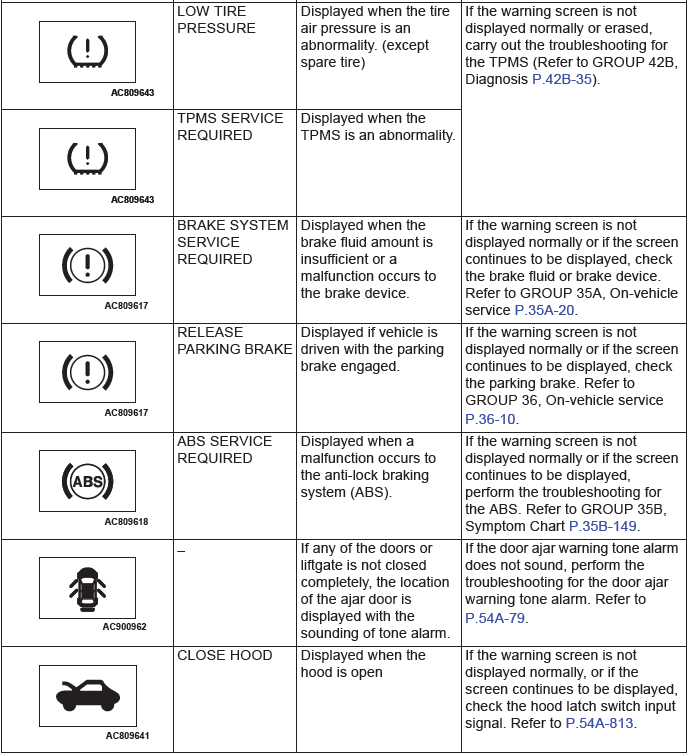

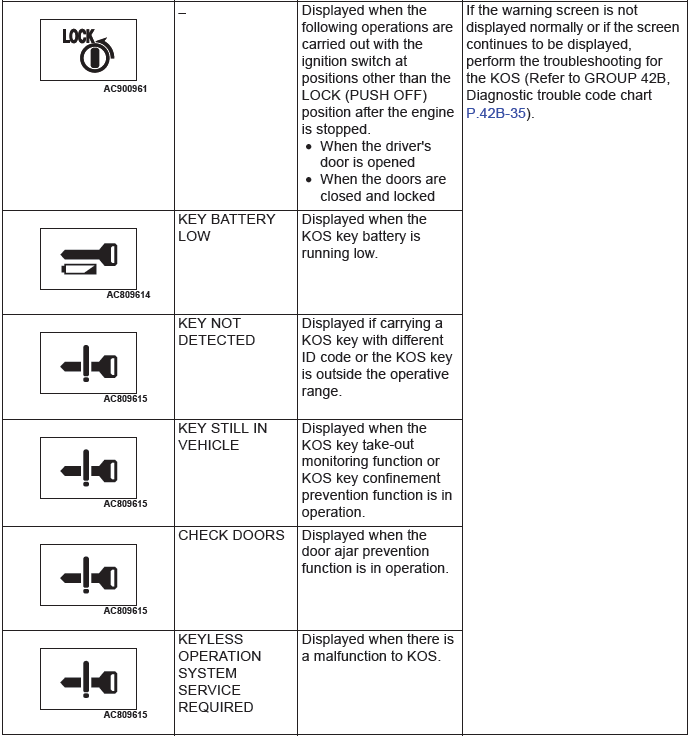

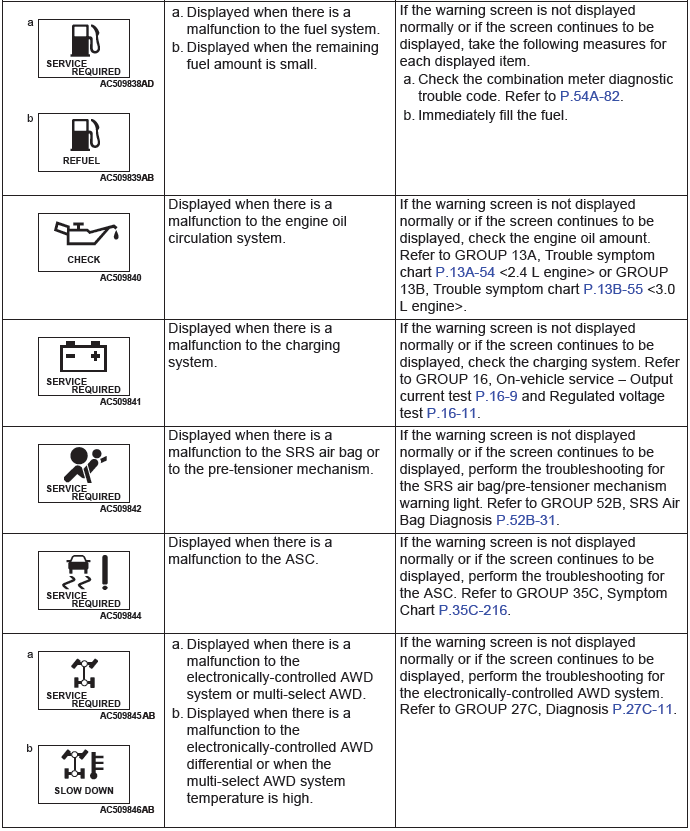

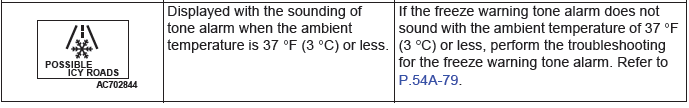

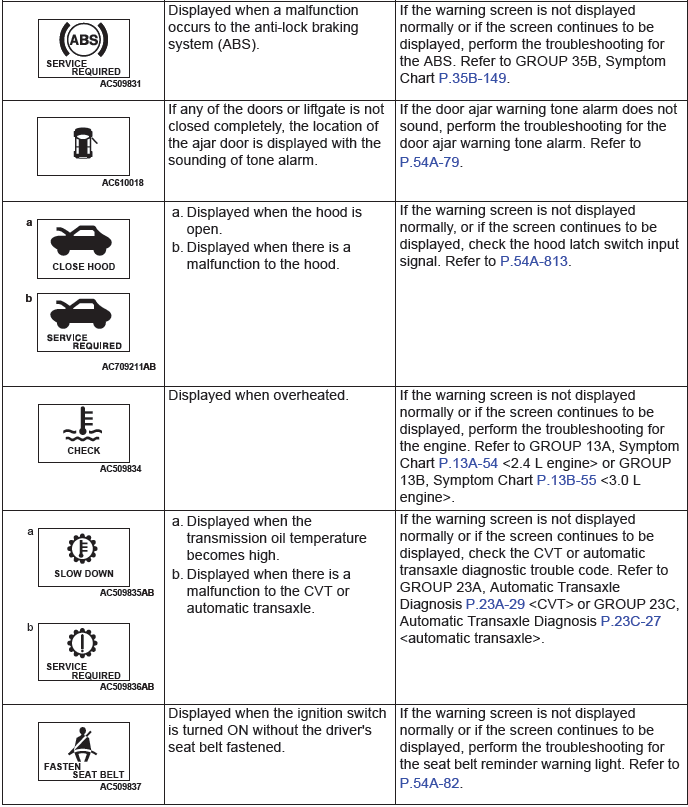

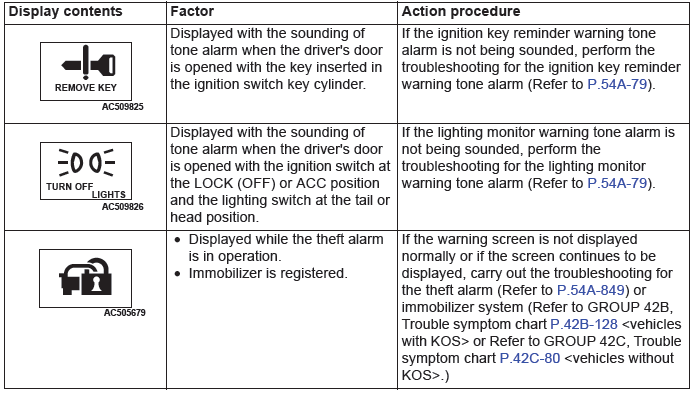

WARNING SCREEN

When malfunctions occur to the vehicle, the following warning screens are displayed. If these screens are not displayed normally or if they continue to be displayed even after the factor is eliminated, take measures according to the action procedure.

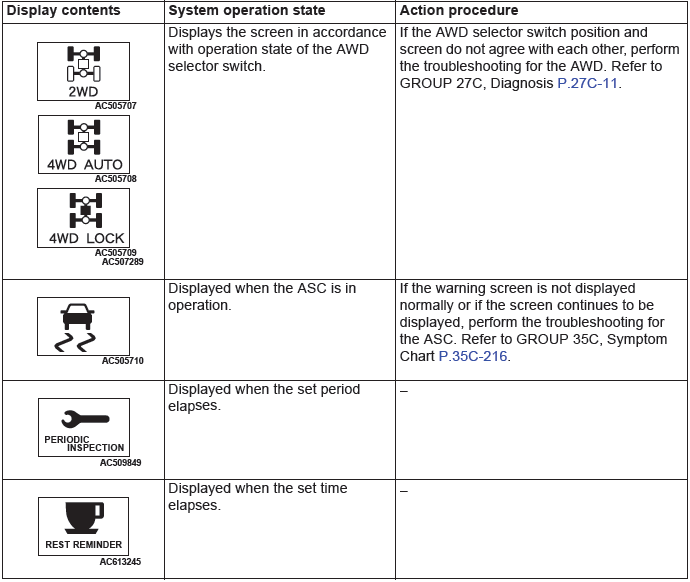

OTHER SCREENS

The screen displays the operation state of each system, periodic checkup timing, or timing for taking a rest during driving. If the screen display differs from the actual system operation state or if the screen is not displayed at the set timing, take measures according to the action procedure.

CHECK PROCEDURE FOR EACH MULTI INFORMATION DISPLAY SCREEN <VEHICLES WITH COLOR LIQUID CRYSTAL DISPLAY>

CAUTION When there are TV towers, substations, or broadcasting stations which emit strong radio waves in proximity, on rare occasions, a warning is displayed on the multi information screen for a few seconds. This is caused by the reception of strong radio waves, and there is no functional problem.

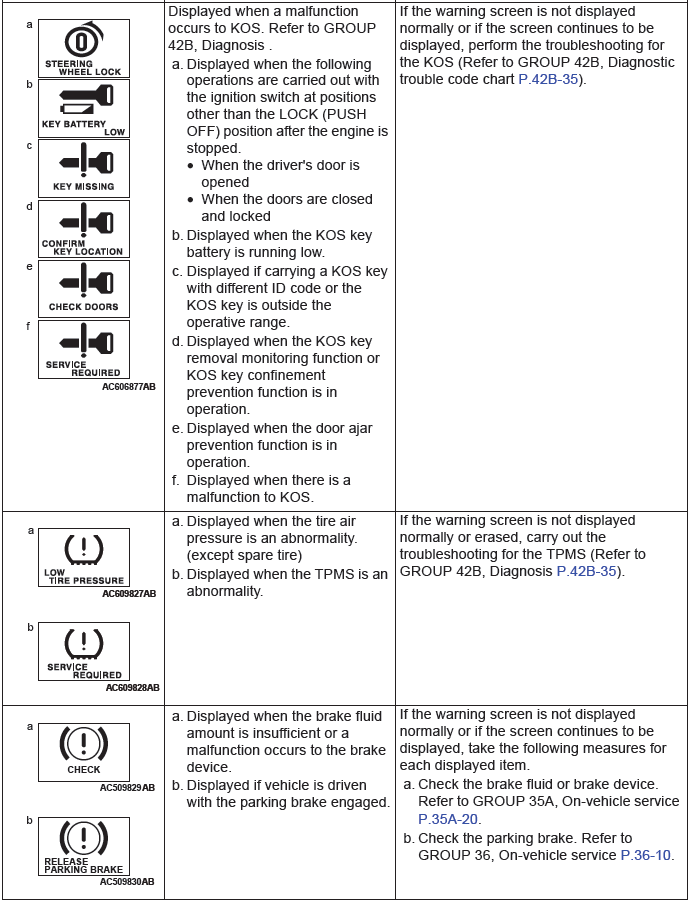

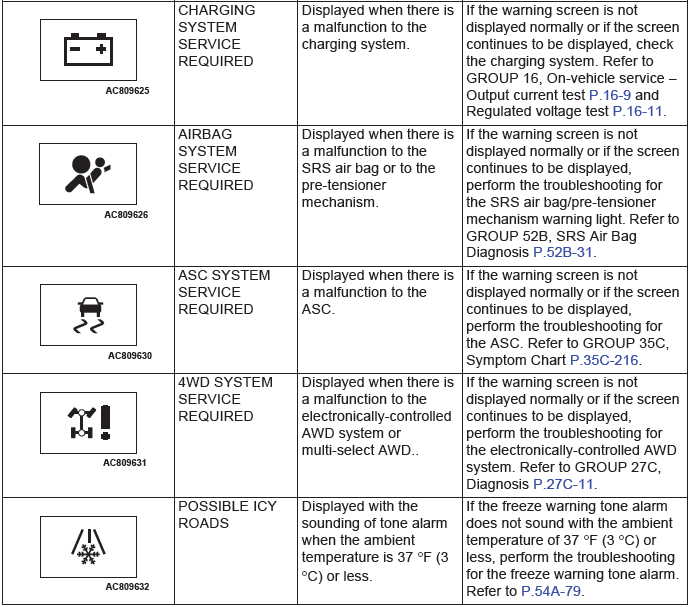

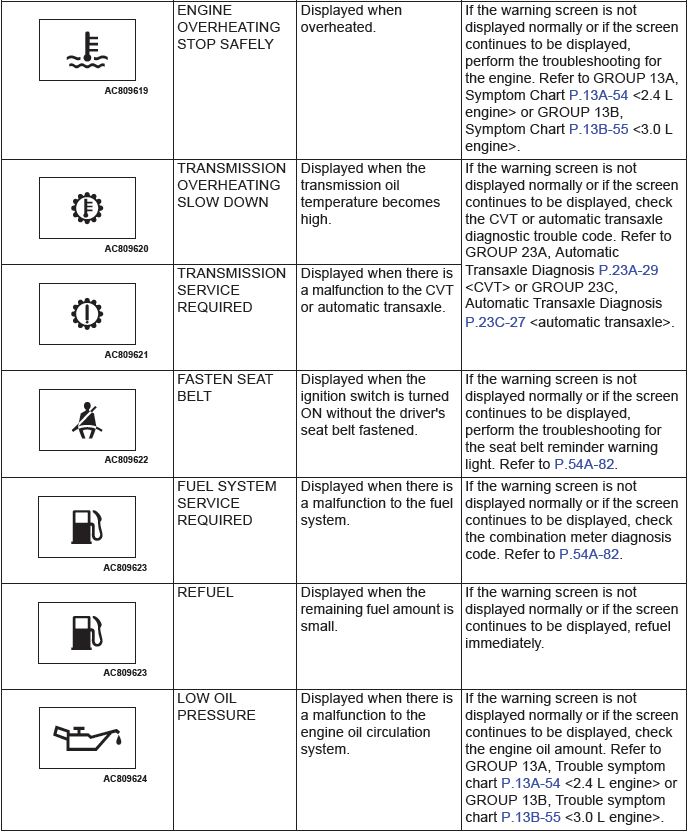

WARNING SCREEN

When malfunctions occur to the vehicle, the following warning screens are displayed. If these screens are not displayed normally or if they continue to be displayed even after the factor is eliminated, take measures according to the action procedure.

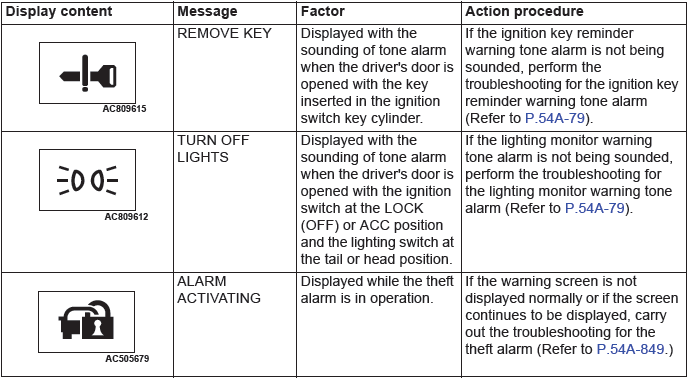

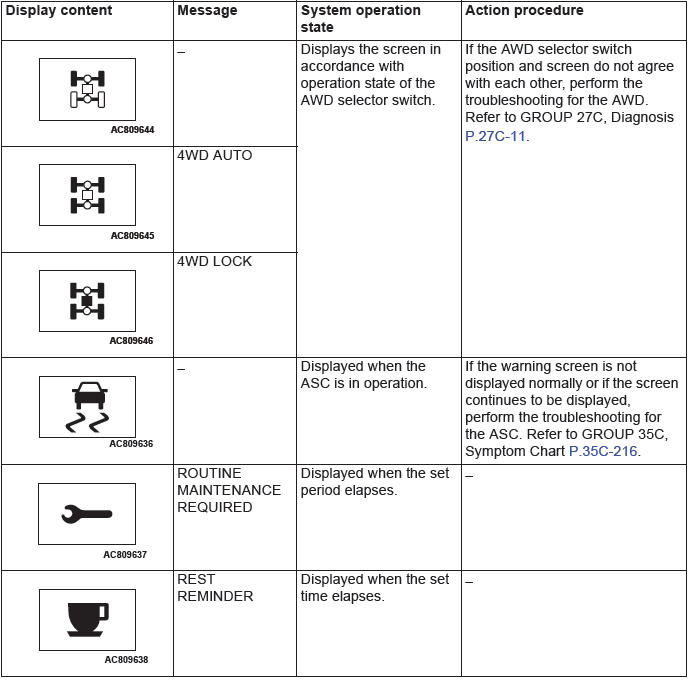

OTHER SCREENS

The screen displays the operation state of each system, periodic checkup timing, or timing for taking a rest during driving. If the screen display differs from the actual system operation state or if the screen is not displayed at the set timing, take measures according to the action procedure.

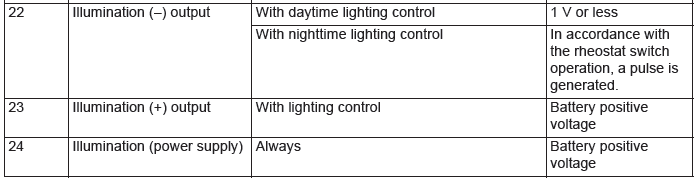

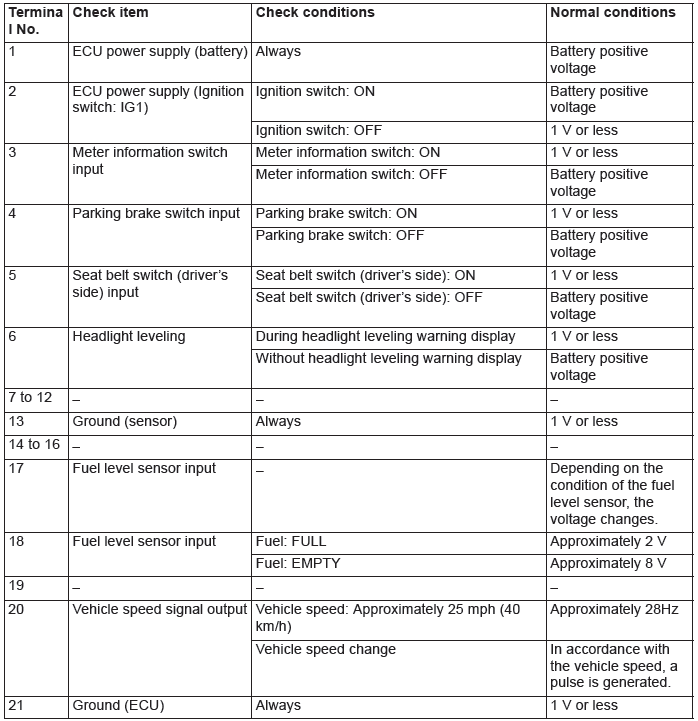

CHECK AT ECU TERMINALS

ON-VEHICLE SERVICE

SPEEDOMETER CHECK

CAUTION

• Since the diagnostic trouble code may be stored in the ABS-ECU or ASC-ECU when checking the speedometer with speedometer tester, erase the diagnostic trouble code.
• Do not accelerate or decelerate suddenly during servicing work.

1. Adjust the pressure of tires to the specified level (Refer to GROUP 31, On-vehicle Service).

2. Where applicable, ensure that the TPMS warning light is not illuminating or flashing.

3. <Vehicles with ASC> Press the ASC OFF switch for 3 seconds or more to stop the ASC operation.

CAUTION Set a free-roller on the rear tire for AWD.

4. For FWD vehicles, set the vehicle onto a speedometer tester and use wheel chocks to hold the rear wheels.

5. For AWD vehicles, set the vehicle onto a speedometer tester and place the rear wheels on a free roller.

6. To prevent the wheel from moving from side to side, attach tension bars to the tie-down hook, and secure both ends to anchor plates.

7. To prevent the vehicle from moving, attach a chain or wire to the rear retraction hook, and make sure the end of the chain or wire is secured.

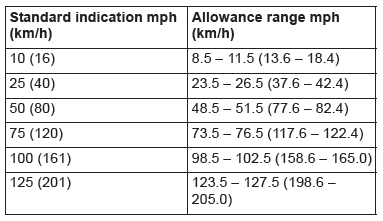

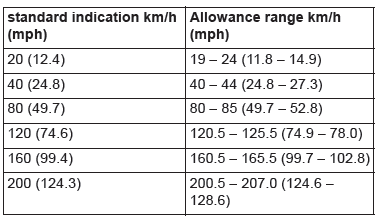

8. Check if the speedometer indicator range is within the standard values.

Standard value <Except vehicles for CANADA>:

Standard value <Vehicles for CANADA>:

9. If not within the standard value, check the tire size. If an incorrect size of tire is used, replace it and check again. If the tire size is correct, a defect may be present in components and circuit between the ABS or ASC and the combination meter. Check the following items.

• ABS or ASC.
• Combination meter.

TACHOMETER CHECK

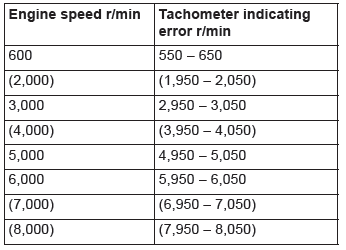

When the actuator tests (item No.2) are performed using scan tool MB991958, check that the tachometer indication error is within the standard value.

NOTE: Values in ( ) indicates the reference value.

Standard value:

FUEL GAUGE UNIT CHECK

VEHICLES FOR FWD

1. Remove the second seat.

2. Remove the floor inspection lid, and then remove the fuel pump module.

NOMINAL RESISTANCE OF THE FUEL LEVEL SENSOR

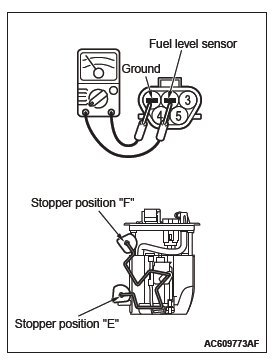

When float of the fuel level sensor is in stopper positions F and E, ensure that resistance between the fuel level sensor terminal and ground terminal is within the standard value.

Standard value:

When the float is moved slowly between stopper positions "F" and "E", ensure that the resistance is smoothly changing.

FUEL LEVEL SENSOR FLOAT HEIGHT

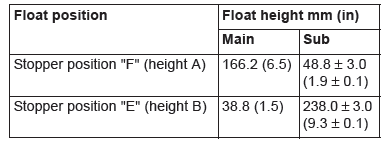

When float is moved to contact the float arm on the stopper, ensure that stopper positions "F" (height A) and "E" (height B) are within the standard value.

Standard value:

VEHICLES FOR AWD

1. Remove the second seat.

2. Remove the floor inspection lid, and then remove the fuel pump module and fuel level sensor (sub).

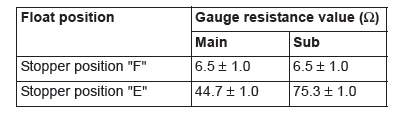

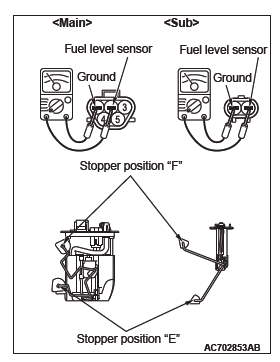

NOMINAL RESISTANCE OF THE FUEL LEVEL SENSOR

When float of the fuel level sensor is in stopper positions F and E, ensure that resistance between the fuel level sensor terminal and ground terminal is within the standard value.

Standard value:

When the float is moved slowly between stopper positions "F" and "E", ensure that the resistance is smoothly changing.

FUEL LEVEL SENSOR FLOAT HEIGHT

When float is moved to contact the float arm on the stopper, ensure that stopper positions "F" (height A) and "E" (height B) are within the standard value.

Standard value:

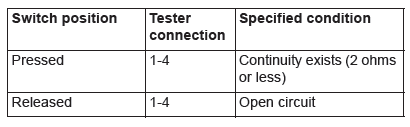

METER INFORMATION SWITCH CHECK
