Mitsubishi Outlander: Side Impact Sensor

REMOVAL AND INSTALLATION

WARNING

Pre-removal Operation

Mitsubishi Outlander. Supplemental Restraint System (SRS)

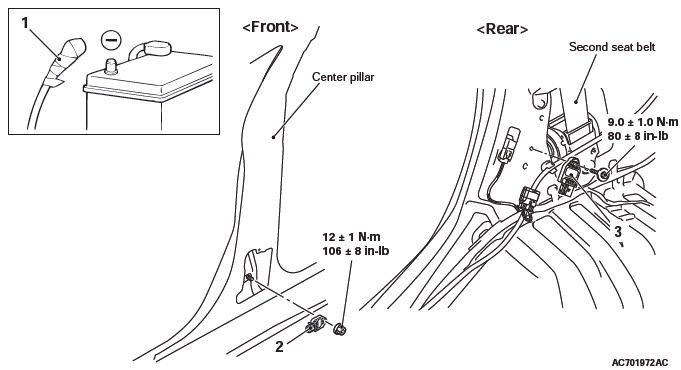

Side impact sensor (front) removal steps

  1. Negative (−) battery cable connection
  1. Side impact sensor (Front)

Side impact sensor (front) installation steps

  1. Side impact sensor (Front)
  1. Negative (−) battery cable connection

Side impact sensor (Rear) removal steps

  1. Negative (−) battery cable connection
  1. Side impact sensor (Rear)

Side impact sensor (Rear) installation steps

  1. Side impact sensor (Rear)
  1. Negative (−) battery cable connection

NOTE: The illustration above shows the side impact sensor (RH). The position of the side impact sensor (LH) is symmetrical to this.

REMOVAL SERVICE POINTS

NEGATIVE (−) BATTERY CABLE DISCONNECTION

DANGER Wait at least 60 seconds after disconnecting the battery cable before doing any further work.

WARNING Battery posts, terminals and related accessories contain lead and lead compounds. WASH HANDS AFTER HANDLING.

Mitsubishi Outlander. Supplemental Restraint System (SRS)

Disconnect the negative (−) battery cable from the battery and tape the terminal to prevent accidental connection and air bag deployment.

IMPACT SENSOR CONNECTOR REMOVAL

Mitsubishi Outlander. Supplemental Restraint System (SRS)

Slide the outer housing of the impact sensor connector in the arrow direction shown, and disconnect the connector.

NOTE: The illustration shows the side impact sensor (rear). As for the impact sensor (front), follow the same procedure.

INSTALLATION SERVICE POINTS

PRE-INSTALLATION INSPECTION

Check the side impact sensor for dents, breakage and bending and measure the resistance between the terminals, even when installing a new side impact sensor.

SIDE IMPACT SENSOR INSTALLATION

WARNING If the side impact sensor is not installed securely and correctly, the side-air bag may not operate normally.

Securely connect the connector.

POST-INSTALLATION INSPECTION

Mitsubishi Outlander. Supplemental Restraint System (SRS)

1. Reconnect the negative (−) battery cable.

2. Turn the ignition switch to the "ON" position.

3. Does the "SRS" warning light illuminate for approximately seven seconds, and go out? 4. If yes, the SRS system is functioning properly

INSPECTION

WARNING If a dent, crack, deformation or rust is detected, replace with a new sensor.

NOTE: For checking of the side impact sensor other than described below, refer to the section concerning SRS diagnosis.

1. Check the side impact sensor and bracket for dents, cracks or deformation.

2. Check the connector for damage, and terminals for deformation.

3. Check that there is no bending or corrosion in the center pillar.
