Mitsubishi Outlander: Sun visors

1- To eliminate front glare 2- To eliminate side glare.

1- To eliminate front glare 2- To eliminate side glare.

Card holder

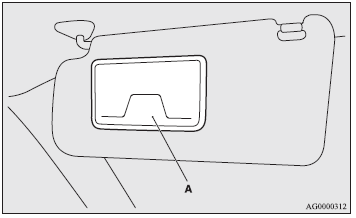

Cards can be slipped into the front (A) of the vanity mirror lid.

Cards can be slipped into the front (A) of the vanity mirror lid.
