Mitsubishi Outlander: DTC B2204, B2206, B2352, B2416, C1608, C1910, C1920, C1930, C1940, C1911, C1921, C1931, C1941, C1912, C1922, C1932, C1942, C1913, C1923, C1933, C1943, C1914, C1924, C1934, C1944

Mitsubishi Outlander 2007-2013 Service Manual / Body, Exterior, Interior and Supplemental / Wireless Control Module (WCM) / Diagnosis / DTC B2204, B2206, B2352, B2416, C1608, C1910, C1920, C1930, C1940, C1911, C1921, C1931, C1941, C1912, C1922, C1932, C1942, C1913, C1923, C1933, C1943, C1914, C1924, C1934, C1944

DTC B2204: Coding data mismatch

CAUTION

DTC SET CONDITION

If the vehicle information data transmitted from the ETACS-ECU via the CAN bus lines is different from that registered in the WCM, the WCM sets the DTC No. B2204.

TECHNICAL DESCRIPTION (COMMENT)

WCM determines that the abnormality is present when the vehicle information registered in it does not match the vehicle information data.

TROUBLESHOOTING HINTS

DIAGNOSIS

Required Special Tools:

STEP 1. Using scan tool MB991958, diagnose the CAN bus line.

CAUTION To prevent damage to scan tool (MB991958), always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool (MB991958).

Mitsubishi Outlander. Wireless Control Module (WCM)

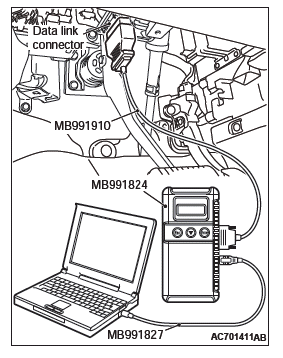

  1. Connect scan tool MB991958 to the data link connector.
  2. Turn the ignition switch to the "ON" position.
  3. Diagnose the CAN bus line.
  4. Turn the ignition switch to the "LOCK" (OFF) position.

Q: Is the CAN bus line found to be normal?

YES : Go to Step 2.

NO : Repair the CAN bus line.

STEP 2. Using scan tool MB991958, read the ETACS-ECU diagnostic trouble code

Check if a coding-related DTC is set in the ETACS-ECU.

Q: Is the DTC set?

YES : Troubleshoot the ETACS. NO : Go to Step 3.

STEP 3. Recheck for diagnostic trouble code.

Check again if the DTC is set to the WCM.

  1. Erase the DTC.
  2. Turn the ignition switch from "LOCK" (OFF) position to "ON" position.
  3. Check if DTC is set.
  4. Turn the ignition switch to the "LOCK" (OFF) position.

Q: Is the DTC set?

YES : Replace WCM and register the ID codes.

NO : The trouble can be an intermittent malfunction.

DTC B2206: VIN code mismatch

DTC SET CONDITION

WCM sets DTC B2206 when chassis number registered in it and the VIN that has been transmitted on the CAN bus do not match.

TECHNICAL DESCRIPTION (COMMENT)

WCM determines that the abnormality is present when VIN registered in it and the one that has been transmitted on the CAN bus do not match.

TROUBLESHOOTING HINTS

DIAGNOSIS

Required Special Tools:

STEP 1. Check the VIN registered in the engine control module and the VIN of the vehicle.

Check if the VIN registered in the engine control module matches with the VIN of the vehicle.

CAUTION To prevent damage to scan tool (MB991958), always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool (MB991958).

Mitsubishi Outlander. Wireless Control Module (WCM)

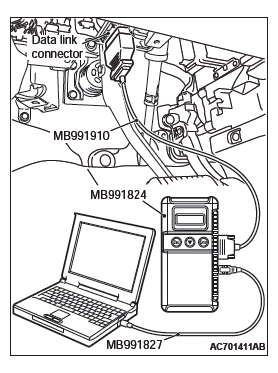

  1. Connect scan tool MB991958 to the data link connector.
  2. On the system selection screen of the scan tool, select "MFI/GDI/Diesel".
  3. Select "Coding".
  4. Select "VIN Information".
  5. Compare with the VIN of the vehicle.

Q: Does the VIN of the engine control module match with the VIN of the vehicle?

YES : Go to Step 2.

NO : Write the VIN to the engine control module. Record VIN and go to Step 2.

STEP 2. Recheck for diagnostic trouble code.

Check again if the DTC is set to the WCM.

  1. Turn the ignition switch to the "ON" position.
  2. Check if the DTC is set.

Q: Is the DTC set?

YES : Replace WCM and register the ID codes. After registering the ID codes, go to Step 3.

NO : The procedure is complete.

STEP 3. Recheck for diagnostic trouble code.

Check again if the DTC is set to the WCM.

  1. Turn the ignition switch to the "ON" position.
  2. Check if the DTC is set.

Q: Is the DTC set?

YES : Replace the engine control module and record the VIN.

NO : The procedure is complete.

DTC B2352: Antenna fail

DTC SET CONDITION

WCM sets the DTC B2352 when open or short circuit to the ground in the antenna is detected.

TECHNICAL DESCRIPTION (COMMENT)

When the ignition switch is turned ON, WCM transmits signal to the antenna. When the antenna is found faulty, WCM determines that the abnormality is present.

TROUBLESHOOTING HINT

Malfunction of WCM (Open circuit in antenna)

DIAGNOSIS

Required Special Tools:

Recheck for diagnostic trouble code.

Check again if the DTC is set to the WCM.

CAUTION To prevent damage to scan tool (MB991958), always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool (MB991958).

Mitsubishi Outlander. Wireless Control Module (WCM)

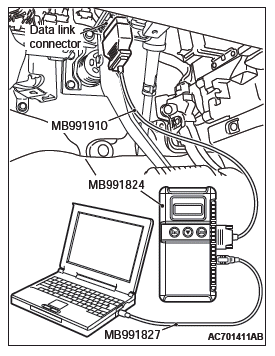

  1. Connect scan tool MB991958 to the data link connector.

    Erase the DTC.

  2. Turn the ignition switch from "LOCK" (OFF) position to "ON" position.
  3. Check if DTC is set.
  4. Turn the ignition switch to the "LOCK" (OFF) position.

Q: Is the DTC set?

YES : Replace WCM and register the ID codes.

NO : The procedure is complete.

DTC B2401: Keyless/KOS key ID not register

CAUTION

DTC SET CONDITION

If the keyless ID registered transmitter is not registered to the WCM, the WCM sets the DTC No.B2401.

TECHNICAL DESCRIPTION (COMMENT)

If the number of keyless ID registered transmitter is zero, the WCM determines that there is a problem.

TROUBLESHOOTING HINTS

DIAGNOSIS

Required Special Tools:

STEP 1. Using scan tool MB991958, diagnose the CAN bus line.

CAUTION To prevent damage to scan tool (MB991958), always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool (MB991958).

Mitsubishi Outlander. Wireless Control Module (WCM)

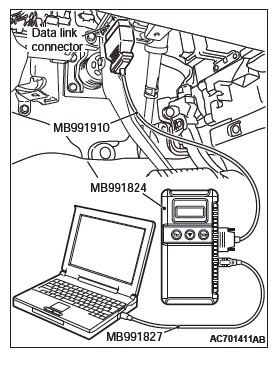

  1. Connect scan tool MB991958 to the data link connector.
  2. Turn the ignition switch to the "ON" position.
  3. Diagnose the CAN bus line.
  4. Turn the ignition switch to the "LOCK" (OFF) position.

Q: Is the CAN bus line found to be normal?

YES : Go to Step 2.

NO : Repair the CAN bus line.

STEP 2. Register the transmitter and recheck the diagnostic trouble code.

Register the keyless ID, and recheck if the DTC is set.

  1. Erase the DTC.
  2. Turn the ignition switch from the "LOCK" (OFF) position to the "ON" position.
  3. Check if the DTC is set.

Q: Is the DTC set?

YES : Replace WCM and register the ID codes.

NO : The procedure is complete.

DTC B2416: ECU internal error

DTC SET CONDITION

WCM sets DTC B2416 when it determines an abnormal status within itself.

TECHNICAL DESCRIPTION (COMMENT)

WCM determines that the abnormality is present, if the data abnormality is found when the ignition switch is turned ON and then EEPROM is written.

TROUBLESHOOTING HINTS

Malfunction of WCM

DIAGNOSIS

Required Special Tools:

Recheck for diagnostic trouble code.

Check again if the DTC is set to the WCM.

CAUTION To prevent damage to scan tool (MB991958), always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool (MB991958).

Mitsubishi Outlander. Wireless Control Module (WCM)

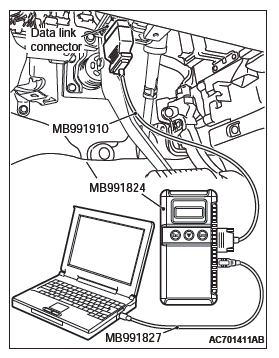

  1. Connect scan tool MB991958 to the data link connector.
  2. Erase the DTC.
  3. Turn the ignition switch from "LOCK" (OFF) position to "ON" position.
  4. Check if DTC is set.
  5. Turn the ignition switch to the "LOCK" (OFF) position.

Q: Is the DTC set?

YES : Replace WCM and register the ID codes.

NO : The trouble can be an intermittent malfunction.

DTC C1608: EEPROM error

CAUTION If there is any problem in the CAN bus lines, an incorrect diagnostic trouble code may be set. Prior to this diagnosis, diagnose the CAN bus lines/

DTC SET CONDITION

WCM incorporates EEPROM (nonvolatile memory), and that EEPROM stores the TPMS, WCM and immobilizer information.

When the data in EEPROM is failed, this code is set.

TROUBLESHOOTING HINTS

The most likely causes for this DTC to set are:

DIAGNOSIS

Required Special Tools:

STEP 1. Using scan tool MB991958, diagnose the CAN bus line.

Use scan tool to diagnose the CAN bus lines.

Q: Is the check result normal?

YES : Go to Step 2.

NO : Repair the CAN bus lines. On completion, go to Step 2.

STEP 2. Diagnostic trouble code check

  1. Turn the ignition switch to the "LOCK" (OFF) position.
  2. Turn the ignition switch to the "ON" position.
  3. Check if the DTC is set.
  4. Turn the ignition switch to the "LOCK" (OFF) position.

Q: Is the DTC C1608 set?

YES : Replace the WCM and register the ID codes. Then go to Step 3.

NO : The procedure is complete.

STEP 3. Diagnostic trouble code check

  1. Turn the ignition switch to the "LOCK" (OFF) position.
  2. Turn the ignition switch to the "ON" position.
  3. Check if the DTC is set.
  4. Turn the ignition switch to the "LOCK" (OFF) position.

Q: Is the DTC C1608 set?

YES : Start over at Step 1.

NO : The procedure is complete.

DTC C1900: No registration

CAUTION If there is any problem in the CAN bus lines, an incorrect diagnostic trouble code may be set. Prior to this diagnosis, diagnose the CAN bus lines.

DTC SET CONDITION

When the ID registration information of the TPMS transmitter is not stored in WCM, and/or when WCM is replaced with a new one, this code is set. If the ID registration mode is terminated forcibly or time-out after one or more TPMS transmitters are registered in the ID registration mode, the ID information in the WCM is erased, and this diagnostic trouble code is set.

TROUBLESHOOTING HINTS

The most likely causes for this DTC to set are:

DIAGNOSIS

Required Special Tools:

STEP 1. Using scan tool MB991958, diagnose the CAN bus line.

Use scan tool to diagnose the CAN bus lines.

Q: Is the check result normal?

YES : Go to Step 2.

NO : Repair the CAN bus lines. On completion, go to Step 2.

STEP 2. Diagnostic trouble code check

  1. Turn the ignition switch to the "LOCK" (OFF) position.
  2. Turn the ignition switch to the "ON" position.
  3. Check if the DTC is set.
  4. Turn the ignition switch to the "LOCK" (OFF) position.

Q: Is the DTC C1900 set?

YES : Register the ID codes. Then go to Step 3.

NO : The procedure is complete.

STEP 3. Recheck for diagnostic trouble code.

Check again if the DTC is set.

  1. Turn the ignition switch to the "LOCK" (OFF) position.
  2. Turn the ignition switch to the "ON" position.
  3. Check if the DTC is set.
  4. Turn the ignition switch to the "LOCK" (OFF) position.

Q: Is the DTC C1900 reset?

YES : Replace the WCM and register the ID codes. Then start over at Step 1.

NO : The procedure is complete.

DTC C1901: Vehicle speed information abnormality

CAUTION If there is any problem in the CAN bus lines, an incorrect diagnostic trouble code may be set. Prior to this diagnosis, diagnose the CAN bus lines.

DTC SET CONDITION

WCM receives the wheel speed information from ABS-ECU or ASC-ECU via the CAN-bus line. Although WCM receives the information that the wheel is not currently rotated from ABS-ECU or ASC-ECU, if the TPMS transmitter sends the information that the wheel is rotated, this code is set.

TROUBLESHOOTING HINTS

The most likely causes for this DTC to set are:

DIAGNOSIS

Required Special Tools:

STEP 1. Using scan tool MB991958, diagnose the CAN bus line.

Use scan tool to diagnose the CAN bus lines.

Q: Is the check result normal?

YES : Go to Step 3.

NO : Repair the CAN bus lines. On completion, go to Step 2.

STEP 2. Diagnostic trouble code recheck after resetting CAN bus lines

  1. Turn the ignition switch to the "LOCK" (OFF) position.
  2. Turn the ignition switch to the "ON" position.
  3. Check if the DTC is set.
  4. Turn the ignition switch to the "LOCK" (OFF) position.

Q: Is the DTC C1901 set?

YES : Go to Step 3.

NO : The procedure is complete.

STEP 3. Check for other diagnostic trouble code.

Check if the diagnostic trouble code is set from ABS-ECU or ASC-ECU <Refer to GROUP 35B,diagnostic trouble code chart (vehicles without ASC) or Refer to GROUP 35C, diagnostic trouble code chart (vehicles with ASC)>.

Q: Is the check result normal?

YES : Go to Step 4.

NO : Carry out the troubleshooting for ABS-ECU or ASC-ECU <Refer to GROUP 35B, diagnostic trouble code chart (vehicles without ASC) or Refer to GROUP 35C, diagnostic trouble code chart (vehicles with ASC)>. Then go to Step 6.

STEP 4. Check for other diagnostic trouble code.

Check if the diagnostic trouble code is set from ETACS-ECU.

YES : Go to Step 5.

NO : Troubleshoot the set DTC.

Then go to Step 6.

STEP 5. Check the TPMS transmitter acceleration.

Check the acceleration value of each TPMS transmitter by the TPMS transmitter check function.

OK: Acceleration value: 5G or less

Q: Is the check result OK?

YES : Replace the WCM and register ID codes. Then go to Step 6.

NO : Replace the TPMS transmitter and register ID codes. Then go to Step 6.

STEP 6. Recheck for diagnostic trouble code.

  1. Turn the ignition switch to the "LOCK" (OFF) position.
  2. Turn the ignition switch to the "ON" position.
  3. Check if the DTC is set.
  4. Turn the ignition switch to the "LOCK" (OFF) position.

Q: Is the DTC C1901 set?

YES : Start over at Step 1.

NO : The procedure is complete.

DTC C1910: Transmitter low battery voltage abnormality 1
DTC C1920: Transmitter low battery voltage abnormality 2
DTC C1930: Transmitter low battery voltage abnormality 3
DTC C1940: Transmitter low battery voltage abnormality 4
DTC C1911: Reception abnormality 1
DTC C1921: Reception abnormality 2
DTC C1931: Reception abnormality 3
DTC C1941: Reception abnormality 4

CAUTION If there is any problem in the CAN bus lines, an incorrect diagnostic trouble code may be set. Prior to this diagnosis, diagnose the CAN bus lines.

DTC SET CONDITION

DTC C1910, C1920, C1930, C1940

DTC C1911, C1921, C1931, C1941

TROUBLESHOOTING HINTS

The most likely causes for this DTC to set are:

DIAGNOSIS

Required Special Tools:

STEP 1. Using scan tool MB991958, diagnose the CAN bus line.

Use scan tool to diagnose the CAN bus lines.

Q: Is the check result normal?

YES : Go to Step 3.

NO : Repair the CAN bus lines. On completion, go to Step 2.

STEP 2. Diagnostic trouble code recheck after resetting CAN bus lines

Q: Is the DTC C1910, C1920, C1930, C1940, C1911, C1921, C1931 or C1941 set?

YES : Go to Step 3.

NO : The procedure is complete.

STEP 3. Check for TPMS transmitter.

Identify the TPMS transmitter which the DTC is set by TPMS transmitter check.

NOTE: The TPMS transmitter which cannot be checked may be faulty or the ID code may not be registered, thus do not replace it, but register the ID code. If the transmitter is faulty, it is replaced in the ID code registration process.

Q: Are there any TPMS transmitters which are identified?

YES : Among the checked TPMS transmitters, replace the TPMS transmitters to which the DTC is set. Then register the ID codes. Then go to Step 4.

NO : Even when no transmitter is checked, register the ID codes. Then go to Step 4.

STEP 4. Diagnostic trouble code recheck after register the ID codes

  1. Turn the ignition switch to the "LOCK" (OFF) position.
  2. Turn the ignition switch to the "ON" position.
  3. Check if the DTC is set.
  4. Turn the ignition switch to the "LOCK" (OFF) position.

Q: Is the DTC C1910, C1920, C1930, C1940, C1911, C1921, C1931 or C1941 set?

YES : Replace the WCM and register the ID codes. Then start over at Step 1.

NO : The procedure is complete.

DTC C1912: Tire inflation pressure warning 1
DTC C1922: Tire inflation pressure warning 2
DTC C1932: Tire inflation pressure warning 3
DTC C1942: Tire inflation pressure warning 4

CAUTION If there is any problem in the CAN bus lines, an incorrect diagnostic trouble code may be set. Prior to this diagnosis, diagnose the CAN bus lines.

DTC SET CONDITION

When the tire pressure included in the signal from the TPMS transmitter is less than the specified value, WCM sets this code.

TROUBLESHOOTING HINTS

The most likely causes for this DTC to set is:

DIAGNOSIS

Required Special Tools:

STEP 1. Using scan tool MB991958, diagnose the CAN bus line.

Use scan tool to diagnose the CAN bus lines.

Q: Is the check result normal?

YES : Go to Step 3.

NO : Repair the CAN bus lines. On completion, go to Step 2.

STEP 2. Diagnostic trouble code recheck after resetting CAN bus lines

Q: Is DTC C1912, C1922, C1932 or C1942 set?

YES : Go to Step 3.

NO : The procedure is complete.

STEP 3. Tire check

Check that there is no abnormality for the items below.

Q: Is the check result normal?

YES : Go to Step 4.

NO : Repair or replace it. Then go to Step 4.

STEP 4. Diagnostic trouble code check

  1. Turn the ignition switch to the "ON" position, and adjust the pressure to the recommended tire pressure.
  2. Check if the DTC is set.

Q: Is DTC C1912, C1922, C1932 or C1942 set?

YES : Go to Step 5.

NO : The procedure is complete.

STEP 5. Diagnostic trouble code check

  1. Drive the vehicle for five minutes.

    NOTE: Even within 5 minutes, if the TPMS warning light goes out, finish the driving and perform the operation (2).

  2. Check if the DTC is set.

Q: Is DTC C1912, C1922, C1932 or C1942 set?

YES : Go to Step 6.

NO : The procedure is complete.

STEP 6. Tire pressure check by scan tool

  1. Perform the transmitter check using the scan tool, and check the tire pressure values of all the wheels.
  2. Check the tire pressure of all the wheels using the tire pressure gauge.
  3. Compare the measured value (1) with (2).

OK: 20 kPa (2.9 psi) or less

NOTE: Do not replace the TPMS transmitter which cannot be checked.

Q: Is the check result OK?

YES : Replace the WCM and register the ID codes. Then go to Step 9.

NO : Go to Step 7.

STEP 7. Tire pressure check by scan tool

  1. Perform the transmitter check using the scan tool, and check the tire pressure values of all the wheels.
  2. Check the tire pressure of all the wheels using the tire pressure gauge.
  3. Compare the measured value (1) with (2).

    OK: 20 kPa (2.9 psi) or less

Q: Is the check result OK?

YES : Replace the WCM and register the ID codes. Then go to Step 9.

NO : Replace the TPMS transmitter and register the ID codes. Then go to Step 8.

STEP 8. Recheck for diagnostic trouble code.

  1. Turn the ignition switch to the "LOCK" (OFF) position.
  2. Turn the ignition switch to the "ON" position.
  3. Check if the DTC is set.
  4. Turn the ignition switch to the "LOCK" (OFF) position.

Q: Is the DTC C1912, C1922, C1932 or C1942 set?

YES : Replace the WCM and register the ID codes. Then go to Step 9.

NO : The procedure is complete.

STEP 9. Recheck for diagnostic trouble code.

  1. Turn the ignition switch to the "LOCK" (OFF) position.
  2. Turn the ignition switch to the "ON" position.
  3. Check if the DTC is set.
  4. Turn the ignition switch to the "LOCK" (OFF) position.

Q: Is the DTC C1912, C1922, C1932 or C1942 set?

YES : Start over at Step 1.

NO : The procedure is complete.

DTC C1913: Acceleration sensor abnormality 1
DTC C1923: Acceleration sensor abnormality 2
DTC C1933: Acceleration sensor abnormality 3
DTC C1943: Acceleration sensor abnormality 4
DTC C1914: Pressure sensor abnormality 1
DTC C1924: Pressure sensor abnormality 2
DTC C1934: Pressure sensor abnormality 3
DTC C1944: Pressure sensor abnormality 4

CAUTION If there is any problem in the CAN bus lines, an incorrect diagnostic trouble code may be set. Prior to this diagnosis, diagnose the CAN bus lines.

DTC SET CONDITION

DTC C1913, C1923, C1933, C1943

DTC C1914, C1924, C1934, C1944

TROUBLESHOOTING HINTS

The most likely causes for this DTC to set are:

DIAGNOSIS

Required Special Tools:

STEP 1. Using scan tool MB991958, diagnose the CAN bus line.

Use scan tool to diagnose the CAN bus lines.

Q: Is the check result normal?

YES : Go to Step 3.

NO : Repair the CAN bus lines. On completion, go to Step 2.

STEP 2. Diagnostic trouble code recheck after resetting CAN bus lines

Q: Is the DTC C1913, C1923, C1933, C1943, C1914, C1924, C1934 or C1944 set?

YES : Go to Step 3.

NO : The procedure is complete.

STEP 3. Check for TPMS transmitter.

Identify the TPMS transmitter which the DTC is set by TPMS transmitter check.

NOTE: The TPMS transmitter which cannot be checked may be faulty or the ID code may not be registered, thus do not replace it, but register the ID code. If the transmitter is faulty, it is replaced in the ID code registration process.

Q: Are there any TPMS transmitters which are identified?

YES : Among the checked TPMS transmitters, replace the TPMS transmitters to which the DTC is set. Then register the ID codes. Then go to Step 4.

NO : Even when no transmitter is checked, register the ID codes. Then go to Step 4.

STEP 4. Diagnostic trouble code recheck after register the ID codes

  1. Turn the ignition switch to the "LOCK" (OFF) position.
  2. Turn the ignition switch to the "ON" position.
  3. Check if the DTC is set.
  4. Turn the ignition switch to the "LOCK" (OFF) position.

Q: Is the DTC C1913, C1923, C1933, C1943, C1914, C1924, C1934 or C1944 set?

YES : Replace the WCM and register the ID codes. Then start over at Step 1.

NO : The procedure is complete.

READ NEXT:

 DTC C1915, C1925, C1935, C1945, U0019, U0141, U0151, U0154, U0155, U0164, U0184, U0195, U0245, U1412 , U1415, U1417

DTC C1915: Transmitter OFF mode 1 DTC C1925: Transmitter OFF mode 2 DTC C1935: Transmitter OFF mode 3 DTC C1945: Transmitter OFF mode 4 CAUTION If there is any problem in the CAN bus lines, an incorre

 Inspection Procedure

Inspection Procedure 1: Scan tool cannot communicate with WCM. CAUTION Before replacing the ECU, ensure that the communication circuit is normal. TECHNICAL DESCRIPTION (COMMENT) If the scan tool canno

 On-vehicle Service

ID CODES REGISTRATION PROCEDURE REGISTRATION USING SCAN TOOL MB991958 (M.U.T.-III SUB ASSEMBLY) Required Special Tools: MB991958 Scan Tool (M.U.T.-III Sub Assembly) MB991824: Vehicle Communication

SEE MORE:

 Door Sash Tape

SPECIAL TOOL REMOVAL AND INSTALLATION Pre-removal and post-installation operation Door Trim Assembly Removal and Installation Door Beltline Weatherstrip Inner Removal and Installation Door Opening Weatherstrip Outer Removal and Installation Door Window Glass Runchannel Removal and Installation

 CVT

General Information F1CJA, W1CJA model has been established. TRANSAXLE The transaxle consists of the torque converter and gear train. The three-element, one-stage, two-phase type torque converter with a built-in torque converter clutch has been adopted. The gear train of F1CJA, W1CJA transaxle cons

© 2010-2024 Copyright www.mioutlander.com
