Mitsubishi Outlander: Vehicle Identification, General Data and Specifications

Mitsubishi Outlander Service Manual / General / Vehicle Identification, General Data and Specifications

Vehicle Identification

VEHICLE IDENTIFICATION NUMBER PLATE

VEHICLES IDENTIFICATION NUMBER LOCATION

The vehicle identification number (VIN) plate is located on a plate attached to the left top side of the instrument panel.

Mitsubishi Outlander. Vehicle Identification

Mitsubishi Outlander. Vehicle Identification

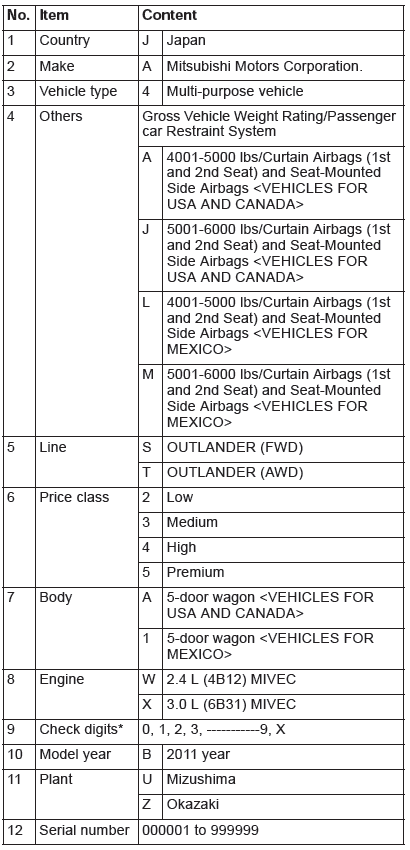

CODE CHART

Mitsubishi Outlander. Vehicle Identification

NOTE: *: Check digit means a single number, or letter X, used to verify the accuracy of transcription of vehicle identification number.

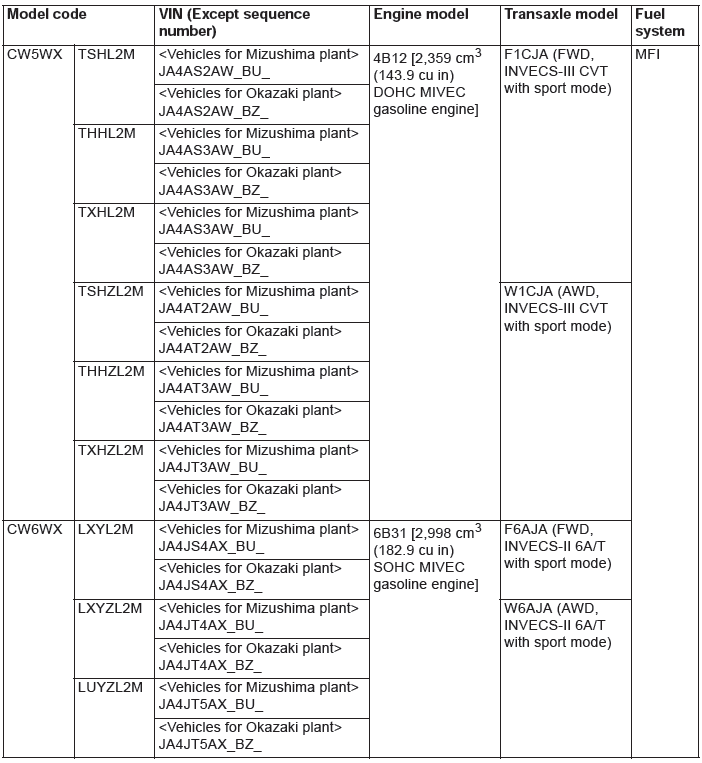

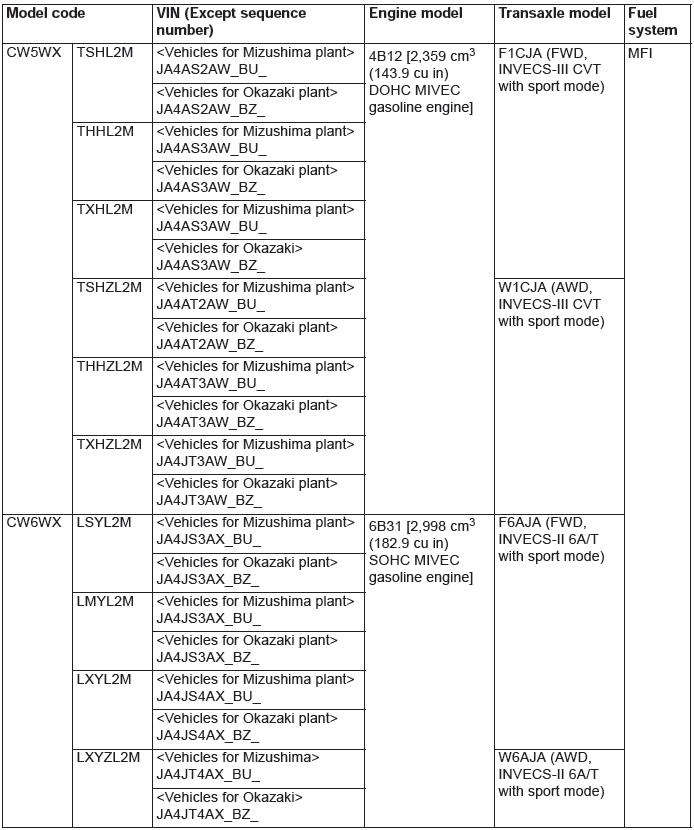

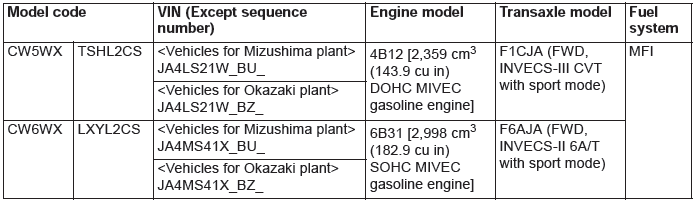

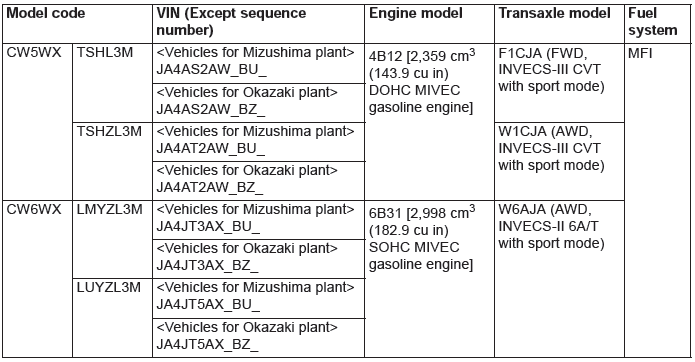

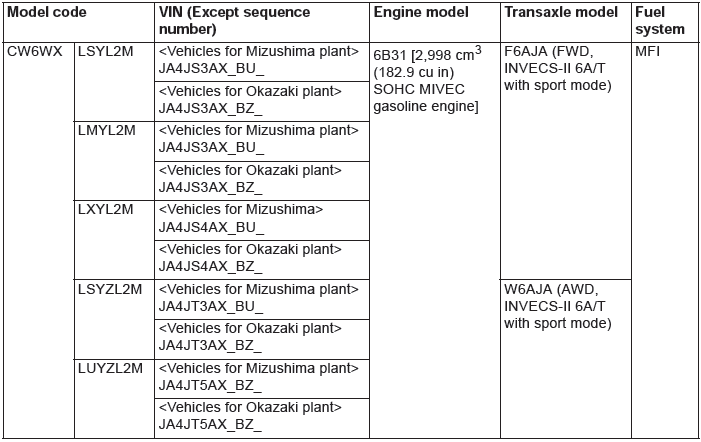

VEHICLE IDENTIFICATION NUMBER LIST

VEHICLES FOR USA (FOR FEDERAL EMISSION REGULATION)

Mitsubishi Outlander. Vehicle Identification

VEHICLES FOR PUERTO RICO

Mitsubishi Outlander. Vehicle Identification

VEHICLES FOR GUAM AND SAIPAN

Mitsubishi Outlander. Vehicle Identification

VEHICLES FOR CANADA

Mitsubishi Outlander. Vehicle Identification

VEHICLES FOR MEXICO

Mitsubishi Outlander. Vehicle Identification

VEHICLE IDENTIFICATION NUMBER (CHASSIS NUMBER)

The vehicle identification number (chassis number) is stamped on the toeboard inside the engine compartment.

Mitsubishi Outlander. Vehicle Identification

CODE CHART

Mitsubishi Outlander. Vehicle Identification

Mitsubishi Outlander. Vehicle Identification

NOTE: *: Check digit means a single number, or letter X, used to verify the accuracy of transcription of vehicle identification number.

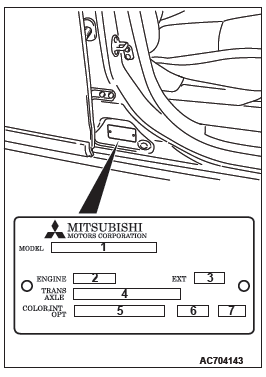

VEHICLE IDENTIFICATION CODE PLATEM

The vehicle information code plate is riveted to the face of the passenger's door sill.

Mitsubishi Outlander. Vehicle Identification

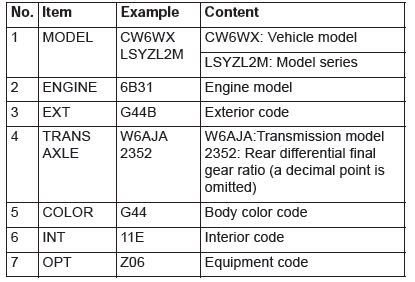

CODE CHART

Mitsubishi Outlander. Vehicle Identification

For monotone color vehicles, the body color code shall be indicated.

TIRE AND LOADING INFORMATION PLACARD

The tire and loading information placard is located on the inside sill of the driver's door.

Mitsubishi Outlander. Vehicle Identification

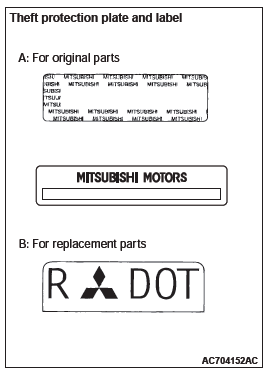

THEFT PROTECTION LABEL

Mitsubishi Outlander. Vehicle Identification

CAUTION

When replacing a part that has the theft protection plate, label or stamp on it, be sure that the part has either A or B shown in the figure. It is illegal if both A and B are attached, or neither A nor B is attached.

In order to protect against theft, a Vehicle Identification Number (VIN) is attached as a plate or label to the following major parts of the engine and transaxle, as well as main outer panels: Engine cylinder block, Transaxle housing, Front end upper bar and Front floor crossmember front.

In addition, a theft-protection label is attached to replacement parts for the body outer panel main components, and the same data is stamped into replacement parts for the engine and the transaxle.

CAUTION

Cautions regarding panel repairs:

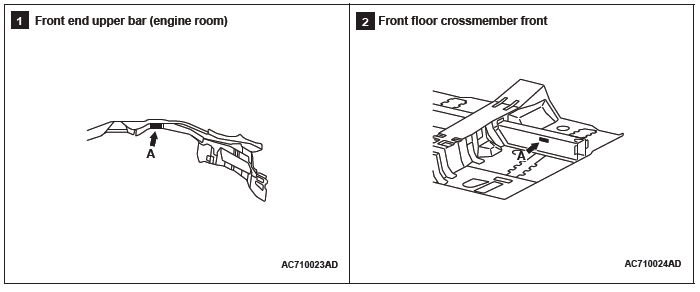

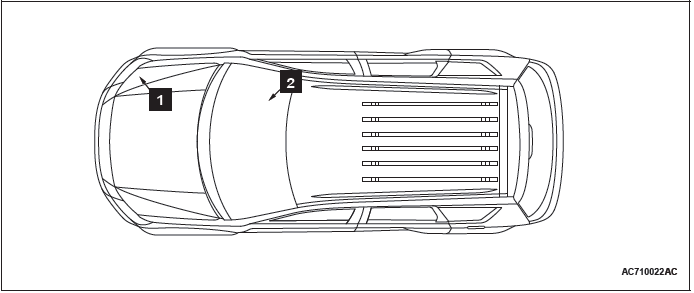

LOCATIONS

Label area (A: Original equipment parts)

Mitsubishi Outlander. Vehicle Identification

Mitsubishi Outlander. Vehicle Identification

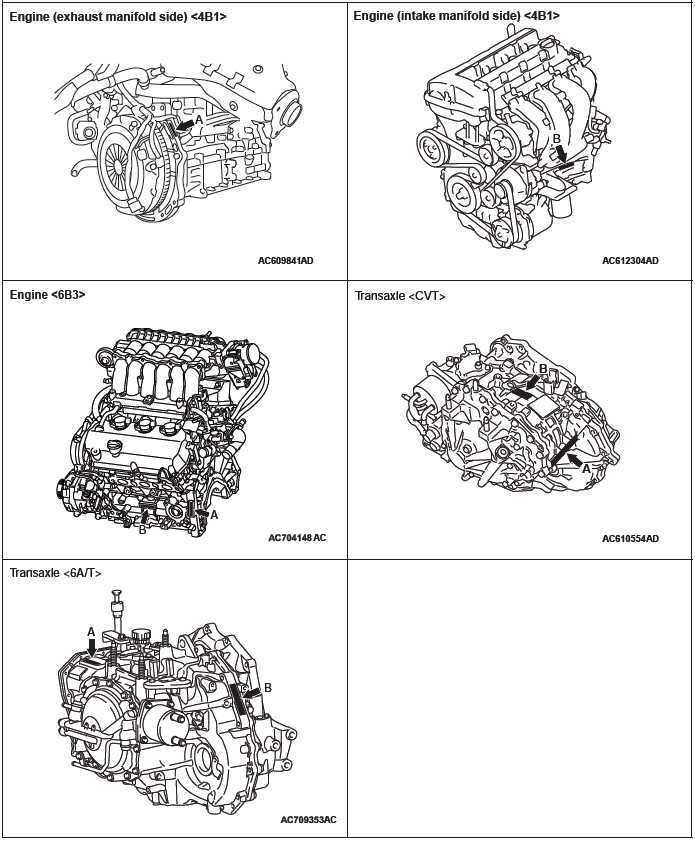

Label area (A: Original equipment parts, B: Replacement parts)

Mitsubishi Outlander. Vehicle Identification

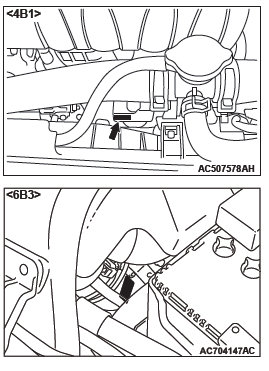

ENGINE MODEL STAMPING

Mitsubishi Outlander. Vehicle Identification

The engine model is stamped on the cylinder block.

These engine model numbers are as shown as follows.

Mitsubishi Outlander. Vehicle Identification

The engine serial number is stamped near the engine model number.

Mitsubishi Outlander. Vehicle Identification

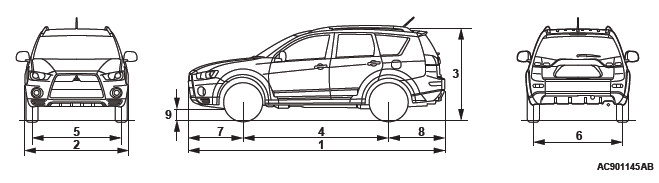

General Data and Specifications

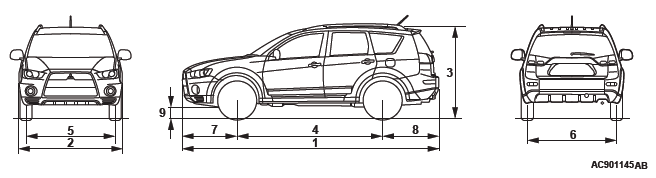

VEHICLES FOR USA

Mitsubishi Outlander. General Data and Specifications

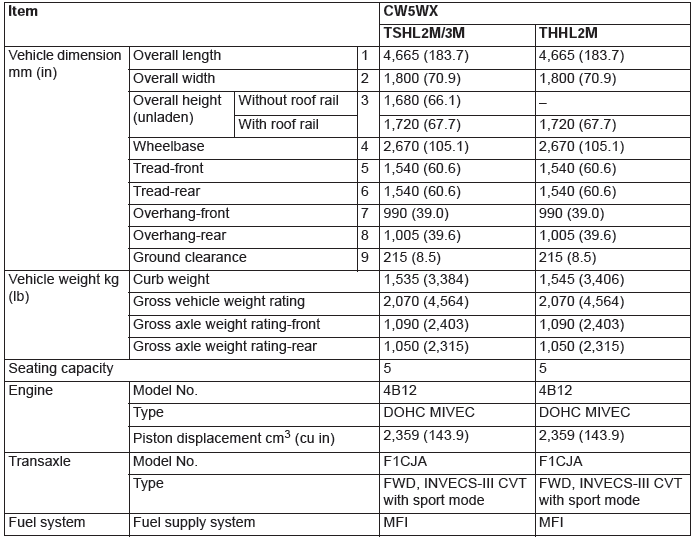

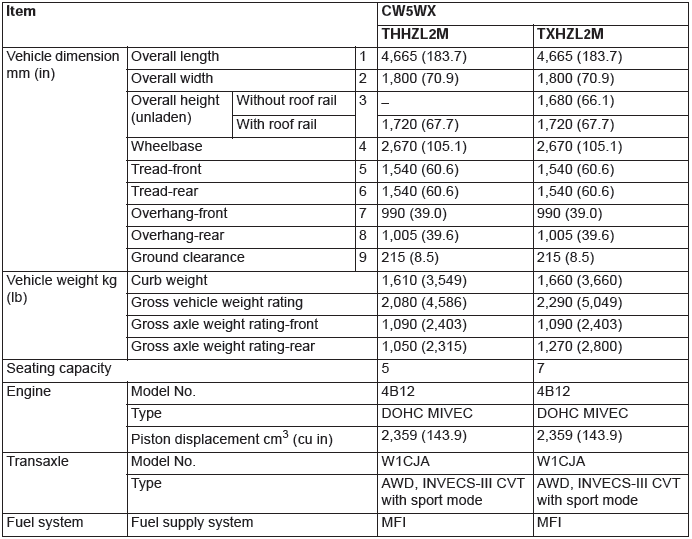

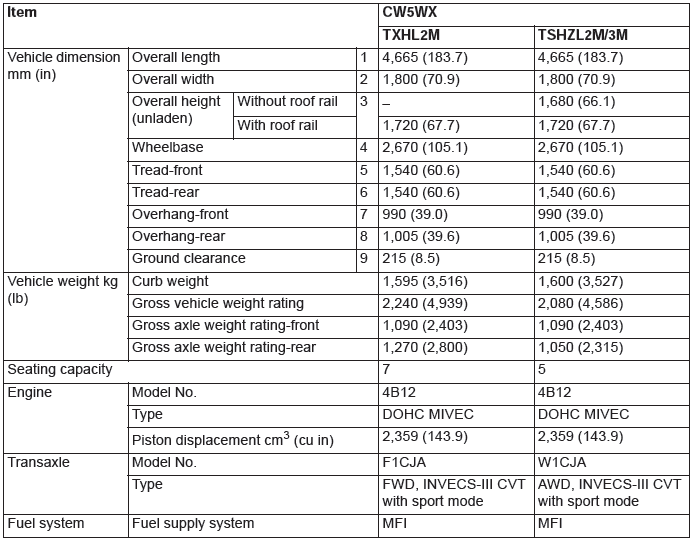

2.4L ENGINE

Mitsubishi Outlander. General Data and Specifications

Mitsubishi Outlander. General Data and Specifications

Mitsubishi Outlander. General Data and Specifications

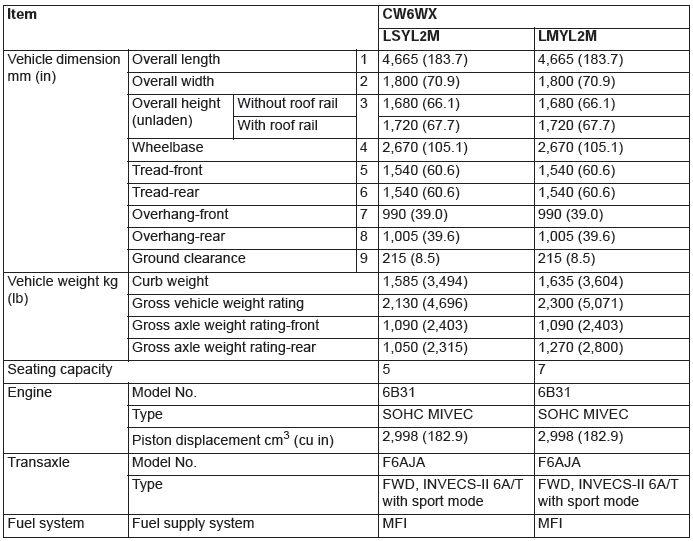

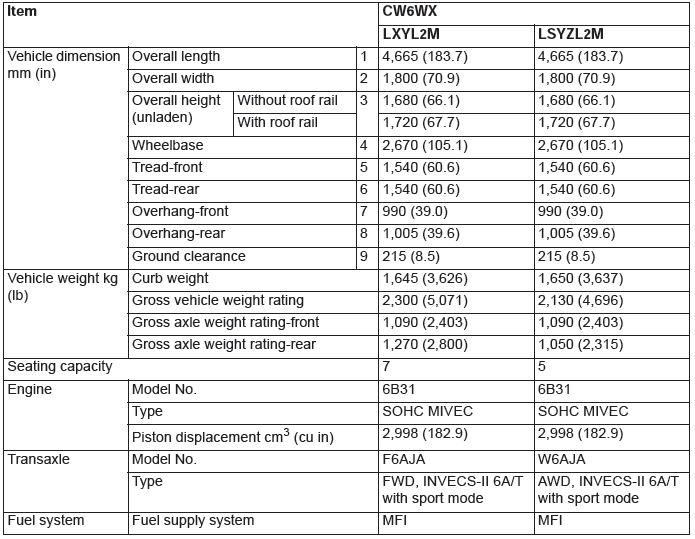

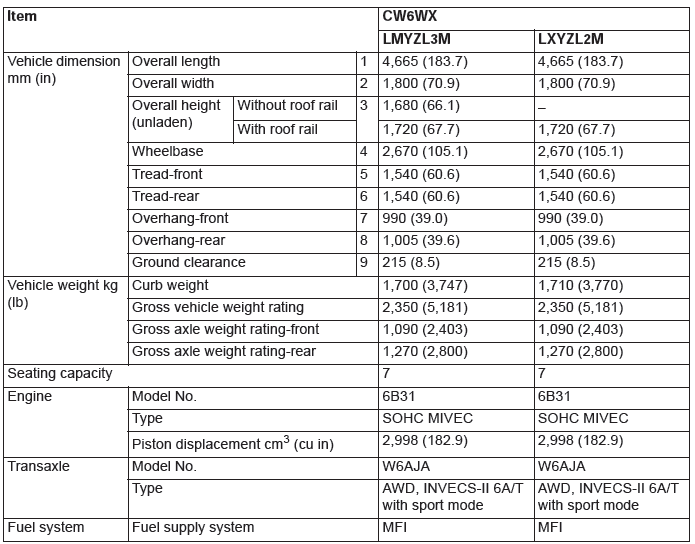

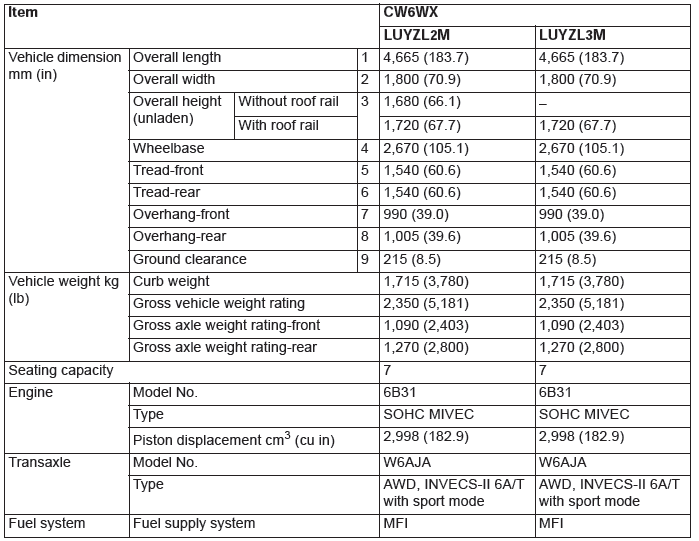

3.0L ENGINE

Mitsubishi Outlander. General Data and Specifications

Mitsubishi Outlander. General Data and Specifications

Mitsubishi Outlander. General Data and Specifications

Mitsubishi Outlander. General Data and Specifications

VEHICLES FOR MEXICO

Mitsubishi Outlander. General Data and Specifications

2.4L ENGINE

Mitsubishi Outlander. General Data and Specifications

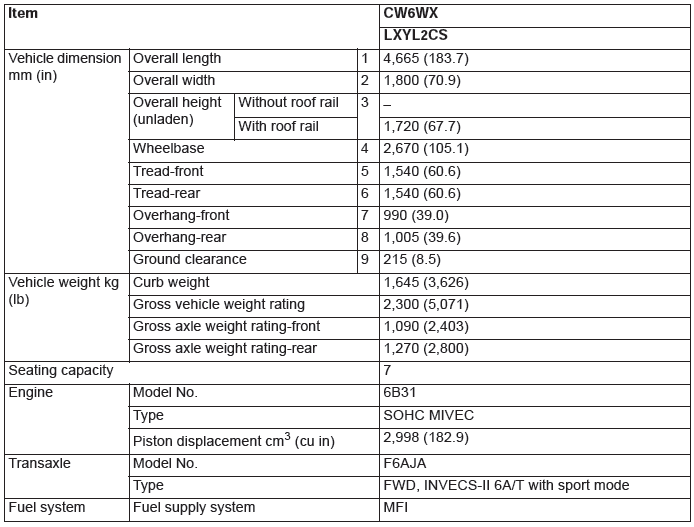

3.0L ENGINE

Mitsubishi Outlander. General Data and Specifications
